Core Sensors CS60 Series

  • Core Sensors

Product Features

  • Explosion-Proof Pressure Transducer
  • Pressure ranges from 50 PSI to 30,000 PSI
  • One piece diaphragm design – No internal O-rings or welds
  • Factory sealed stainless steel case – Withstands harsh environments
  • Accuracy of ≤±0.25% BFSL at 25°C (<10,000 PSI)
  • Pressure cycles of 100 million
  • Overpressure of 2x minimum
  • CSA

Applications

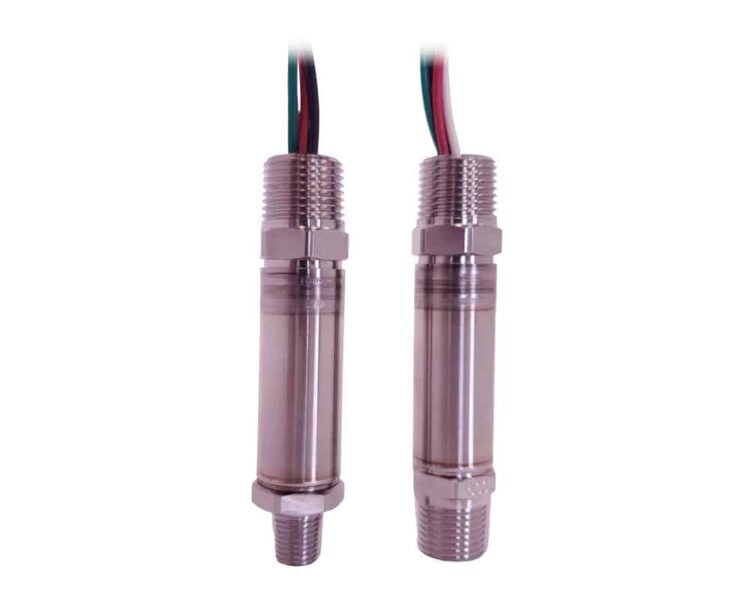

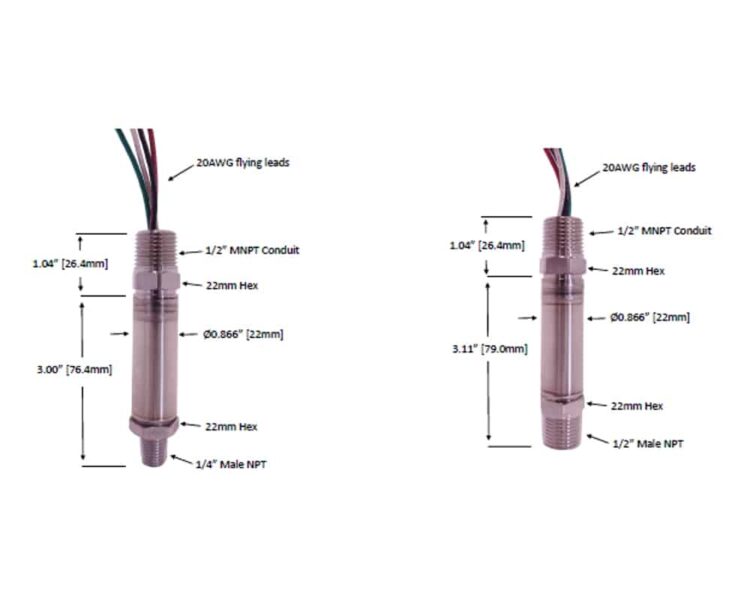

The CS60 Explosion-Proof Pressure Transducer is a high strength sensor designed for use in Class I, Division 1 explosion-proof locations. The CS60 features an all welded, factory sealed stainless steel construction, offering a minimum IP66 rating. A 1/2” Male NPT conduit fitting with 2 meters of 20AWG flying leads is standard, allowing for easy installation of rigid metal conduit. A wide operating temperature range and configurable design makes the CS60 a versatile pressure transducer that was engineered to operate in some the harshest conditions. Available output signals include 1-5V and 4-20mA loop powered. The CS60 is an excellent solution for applications such as well head pressure measurement, natural gas compressors and oil exploration.

  • Explosion-Proof Pressure Transducer
  • Pressure ranges from 50 PSI to 30,000 PSI
  • One piece diaphragm design – No internal O-rings or welds
  • Factory sealed stainless steel case – Withstands harsh environments
  • Accuracy at 25°C of ≤±0.25% BFSL (≤±0.5% BFSL >10,000 PSI)
  • Stability of ≤±0.25% of FS (1 year)
  • Pressure cycles of 100 million
  • Overpressure of 2x minimum
  • Burst pressure of 5x or 60,000 PSI (whichever is less)
  • Operating temperature range −40°C to +85°C
  • Media temperature range of -40 to +120°C
  • IP66 rated
  • Please contact us for custom designs

Approvals/Certifications for the Core CS60 series include:

  • Explosion-Proof:
    ✓ CSA Class I, Division 1, Groups A, B, C, D, T4
    ✓ Class I Zone 1 AEx db IIC T4 Gb
    ✓ Ex db IIC T4 Gb
  • Dust Ignition-Proof:
    ✓ Class II, Division 1, Groups E, F and G, T135°C
    ✓ Zone 21 AEx tb IIIC T135°C Db
    ✓ Ex tb IIIC T135°C Db
  • ANSI/UL 122701 Single Seal Certified
  • CE

Typical applications for the CS60 Explosion-Proof Pressure Transducer series include:

  • Well head pressure measurement
  • Marine and offshore equipment
  • Oil exploration
  • Natural gas compression
  • Pipeline equipment
  • Power generation
