Coto 9002 Series

  • Coto Technology

Product Features

  • High reliability reed relays
  • High insulation resistance of 1012Ω minimum
  • Switching current 0.5A
  • Optional coil suppression diode
  • Optional coaxial shield for 50Ω impedance
  • Temperature range −20°C to +85°C


  • Compliant

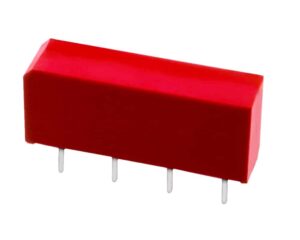

The 9002 high performance SIP reed relay series from Coto features available coil voltage options of 5VDC and 12VDC with a switching voltage of 200V and switching current of 0.5A. Optional coaxial shielding for 50Ω impedance and switching of fast rise time digital pulses, as well as an optional coil suppression diode which protects coil drive circuits. The 9002 series relays are the industry standard when high reliability and consistent performance are desired in a compact package, with high speed switching compared to electromechanical relays. They have hermetically sealed contacts for long life (tested up to 1 billion operations) and with a moulded thermoset body on integral lead frame design, these relays are ideally suited to the needs of automated test equipment, instrumentation, telecommunications and RF applications.

  • Reed relay
  • Nominal coil voltage options of 5VDC and 12VDC
  • Contact form of 1A
  • Switching voltage of 200V
  • Dielectric strength of 300VDC
  • Contact rating 10W
  • Switching current 0.5A
  • High insulation resistance of 1012Ω minimum
  • Temperature range −20°C to +85°C
  • Optional coaxial shielding
  • Optional coil suppression diode
  • Moulded 6 pin SIP package

Typical Applications include:

  • Automated test equipment
  • RF requirements
  • Instrumentation
  • Telecommunications applications

For further information regarding coil specifications, contact ratings and relay specifications please see the datasheet on the Technical Library tab.

Calculators and Convertors

Work out what you need for your project. Go to calculators and convertors

Contact us if you need your items quicker or need more than in stock.


Weight 0.00000 kg
Dimensions 8.10 x 5.64 x 19.80mm
Coil Voltage


Contact Form

Contact Rating

Dielectric Strength

Diode Option


Series / Model



Switching Voltage

RoHS Compliant Product – Coto

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
