Coto 9007 Series

  • Coto Technology

Product Features

  • Economy reed relays
  • High insulation resistance of 1010Ω minimum
  • Switching current 0.5A
  • Optional coil suppression diode
  • Optional magnetic shield
  • Operating temperature −20°C to +85°C

Applications

Description

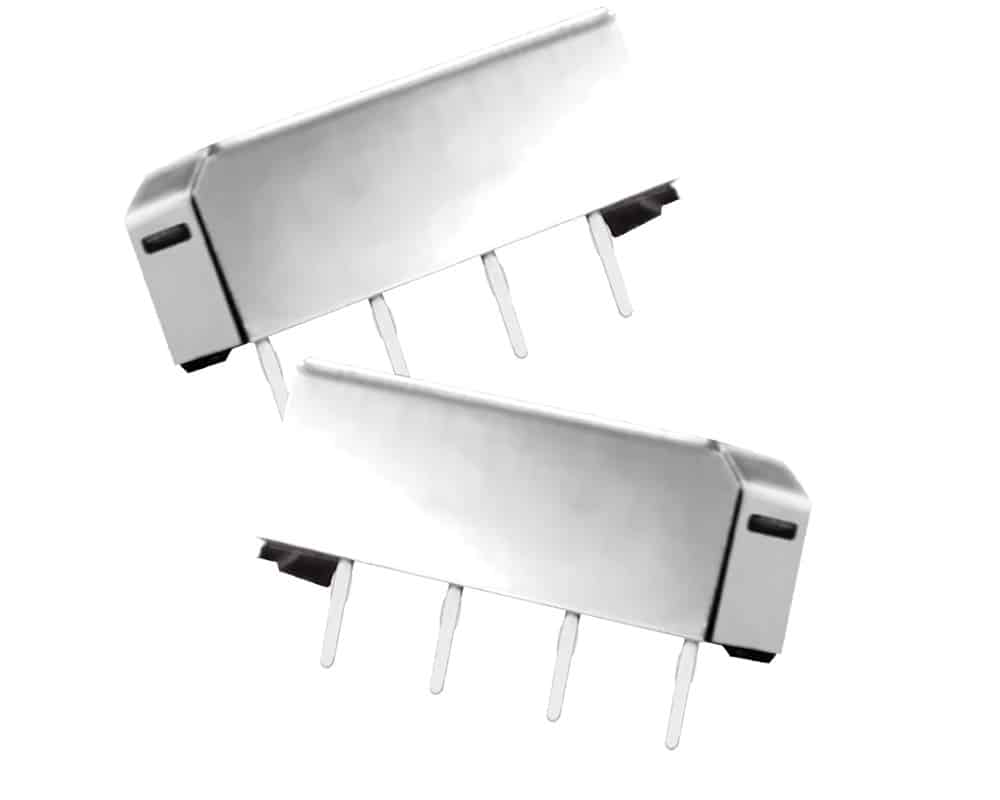

The 9007 series economy SIP reed relays from Coto features coil voltage options of 5VDC, 12VDC and 24VDC with the option of having a coil suppression diode which protects coil drive circuits, also you have the option of an external magnetic shield. The 9007 series has a switching voltage of 200V and a switching current of 0.5A. These economy SIP reed relays from Coto are the industry choice for a wide variety of designs where economy, performance and a compact package are needed. The 9007 Spartan series is a general purpose version of the 9001 for applications with less stringent requirements. High speed switching compared to electromechanical relays, they have hermetically sealed contacts for long life and a moulded thermoset body on integral lead frame design. The 9007 series relays are well suited for applications in security, instrumentation and modems.

  • Economy SIP reed relays
  • Coil voltage options available are 5VDC, 12VDC or 24VDC
  • Contact form of 1A
  • Switching voltage of 200V
  • Dielectric strength of 250VDC
  • Contact rating 10W
  • Switching current 0.5A
  • High insulation resistance of 1010Ω minimum
  • Operating temperature range −20°C to +85°C
  • Optional external magnetic shield
  • Optional coil suppression diode
  • Moulded 4 pin SIP package

Typical Applications include:

  • Security
  • Instrumentation
  • Modems

For further information regarding coil specifications, contact ratings and relay specifications please see the datasheet on the Technical Library tab.

Specifications

Weight 0.00000 kg

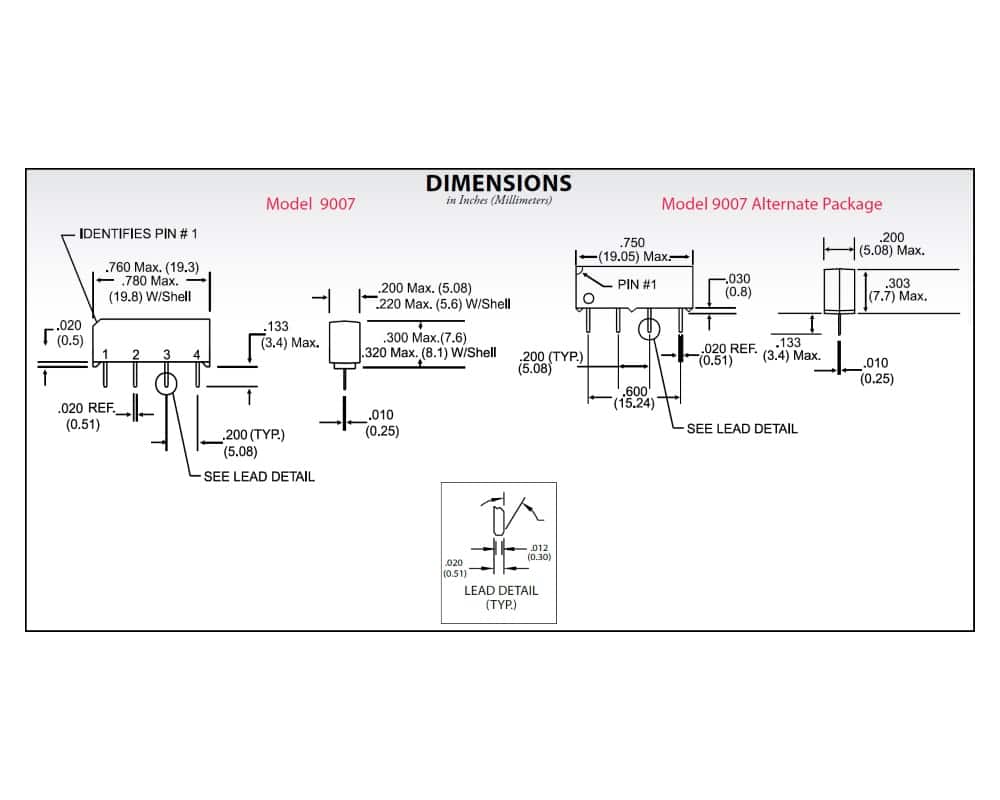

Dimensions 19.80 × 5.60 × 8.10 mm
