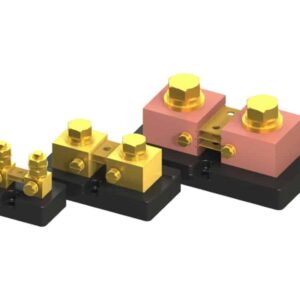

Riedon RSB Series

  • Riedon

Product Features

  • Base mounted shunt
  • Output rating of 0.05V or 0.1V
  • Manganin® resistive element
  • Dielectric strength of 750VDC (terminal block to base)
  • Temperature range of -40° to +60°C, UL listed

Applications

  • Compliant

Description

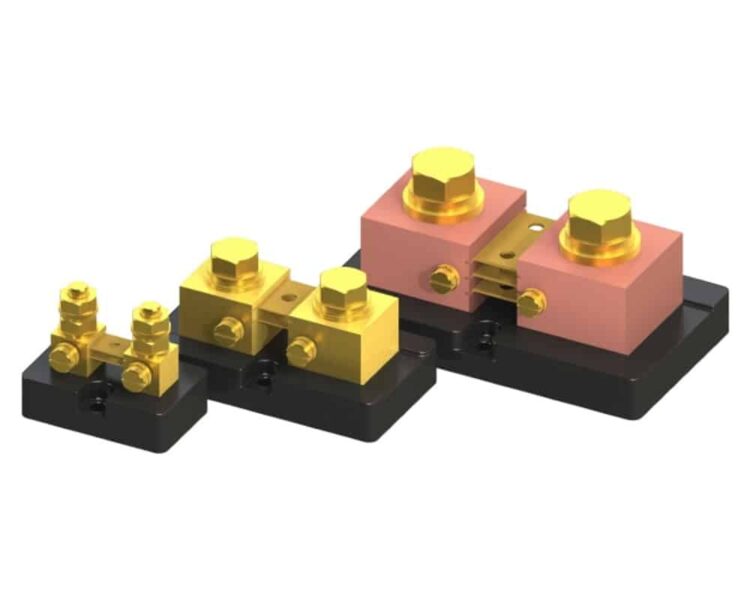

The RSB series of precision current shunts from Riedon have been especially designed for DC ammeters and similar instruments. These base-mounted shunts offer current ratings from 170A up to 600A with outputs of 0.05V, 0.1V or custom options available. They utilise a Manganin® resistive element and have a standard tolerance of ±0.25% with ±0.1% parts available on request. The very low resistance values required for the shunt resistors, which range from 83.3µΩ at 600A to 588.2µΩ at 170A, are provided by the Manganin® resistive elements. The RSB precision shunt resistors are also UL listed and feature a 4-terminal design, separating the heavy duty load carrying connections from the voltage sensing terminals.

  • Base mounted shunt
  • Manganin® resistive element
  • 0.05V output available in select resistance values between 83.3µΩ and 294.1µΩ
  • 0.1V output available in select resistance values between 166.7µΩ and 588.2µΩ
  • Current rating from170A to 600A
  • Standard tolerance of ±0.25% with ±0.1% parts available on request
  • Dielectric strength 750VDC (terminal block to base)
  • Temperature range −40°C to +60°C
  • UL listed

Riedon RSB series base mounted shunts cover the following applications:

  • Solar generators
  • Wind power
  • Heavy industry
  • Electroplating
  • Battery chargers
  • Mining

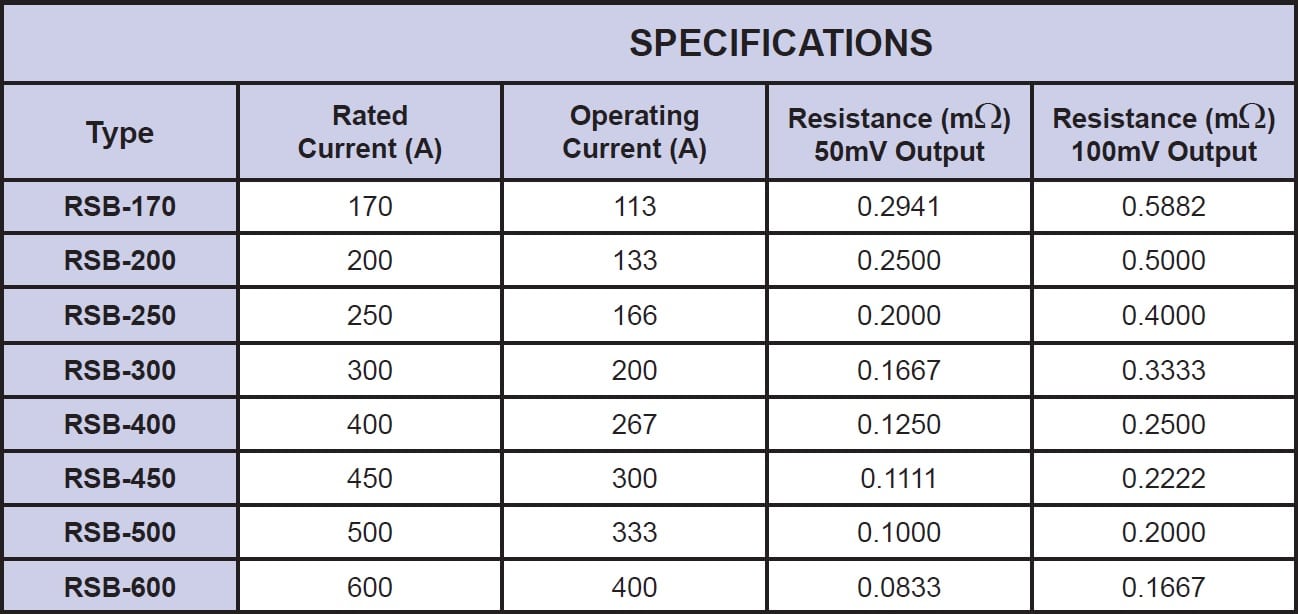

The below table gives the full specifications for each resistor model available in the Riedon RSB base mounted shunt series:

Riedon RSB Specifications

1 Please contact us for other resistance values


Specifications

Weight 0.30000 kg

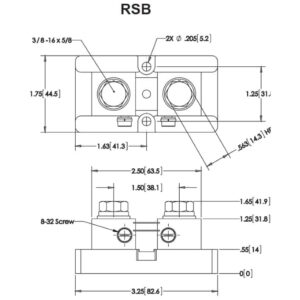

Dimensions 82.60 × 44.50 × 41.90 mm
Minimum Resistance

Series / Model

Maximum Resistance

Tolerance

Output

,

Additional Features

Base mounted shunt Output rating of 0.05V or 0.1VManganin® resistive elementDielectric strength of 750VDC (terminal block to base)Operating temperature of -40° to +60°C, UL listed

Current Rating

, , , , , , ,

Temperature Coefficient

RoHS Compliant Product – Riedon

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
