Riedon RSN Series

  • Riedon

Product Features

  • Base mounted shunt
  • Output rating of 0.05V or 0.1V
  • Manganin® resistive element
  • Calibration certificate available
  • Temperature range of +30° to +70°C

Applications

  • Compliant

Description

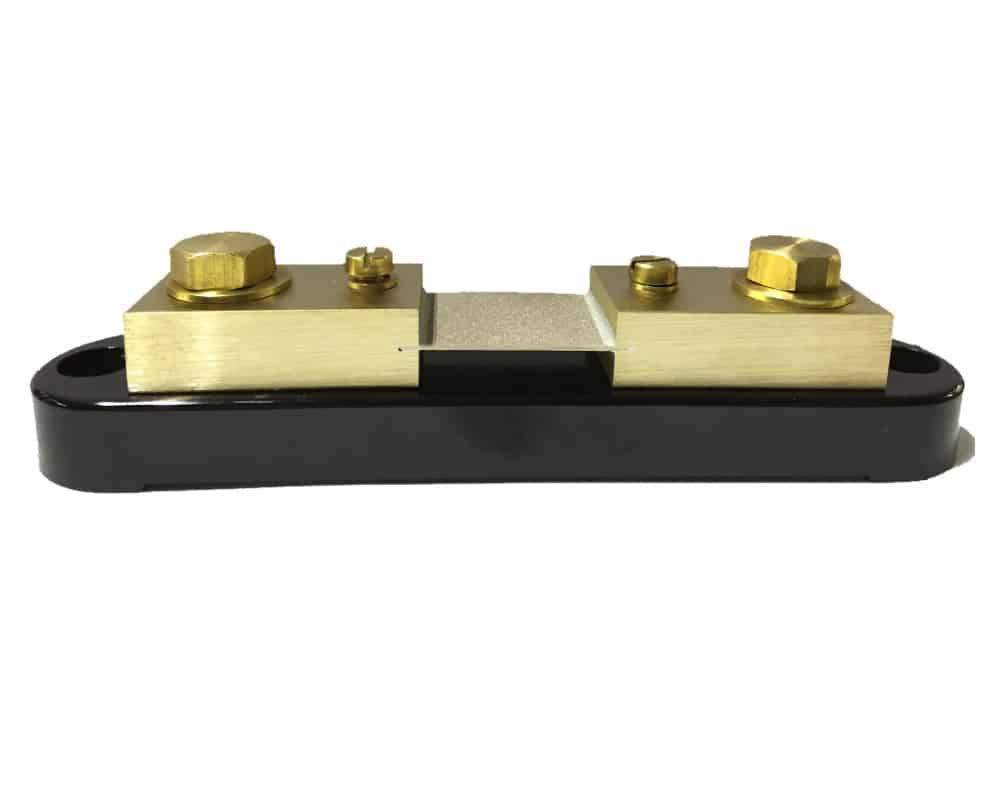

The RSN series of base-mounted DC ammeter/busbar shunts from Riedon offer current ratings from 1A up to 500A with outputs of 0.05V, 0.1V or custom options. They utilise a Manganin® resistive element to achieve low resistance values ranging from 100µΩ at 500A to 0.05Ω at 1A (for 50mV Output) and have a standard tolerance of ±0.1%.

  • Base mounted shunt
  • Manganin® resistive element
  • 0.05V output available in select resistance values between 100µΩ and 0.05Ω
  • 0.1V output available in select resistance values between 200µΩ and 0.1Ω
  • Current rating from 1A to 500A
  • Standard tolerance of ±0.1%
  • Calibration certificate available
  • Temperature range +30°C to +70°C

Riedon RSN series base mounted shunts cover the following applications:

  • Power supply
  • Power conversions
  • Current measurements

The below table gives the full specifications for each resistor model available in the Riedon RSN base mounted shunt series:

Riedon RSN Specifications


Specifications

Weight 0.10000 kg

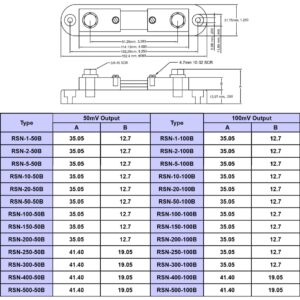

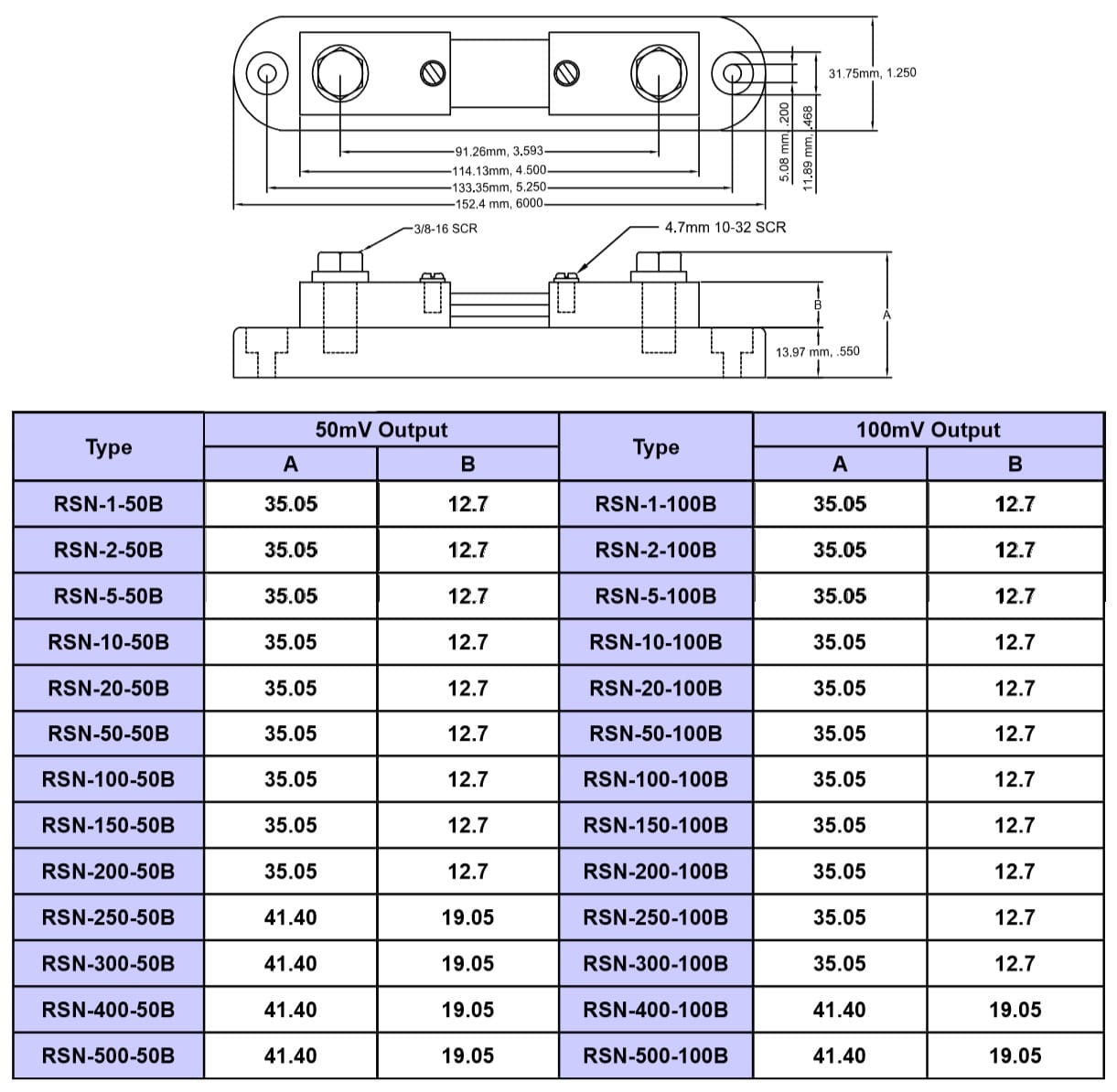

Dimensions 152.40 × 31.75 × 35.05 mm
Minimum Resistance

Series / Model

Maximum Resistance

Tolerance

Output

,

Additional Features

Base mounted shuntOutput rating of 0.05V or 0.1VManganin® resistive elementCalibration certificate availableOperating temperature of +30° to +70°C

Current Rating

, , , , , , , , , , , ,

Temperature Coefficient

RoHS Compliant Product – Riedon

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

Riedon RSN Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Riedon RSN shunt series datasheet
A resistor primer application note
Current sense resistors application note
Custom resistors for high pulse applications application note
DC ammeter shunts press release
Expanded DC current shunts press release
High pulse custom resistor white paper
LED lighting resistors application note
Pulse rated wirewound resistors application note
Resistors for power supplies white paper
Resistors for the medical market white paper
RTD basics application note
The 'good old' power resistors application note
Understanding temperature coefficient of resistance application notes
Using power resistors as heaters application note
Using wirewound vs. film resistors for precision applications application note
Riedon product line overview
