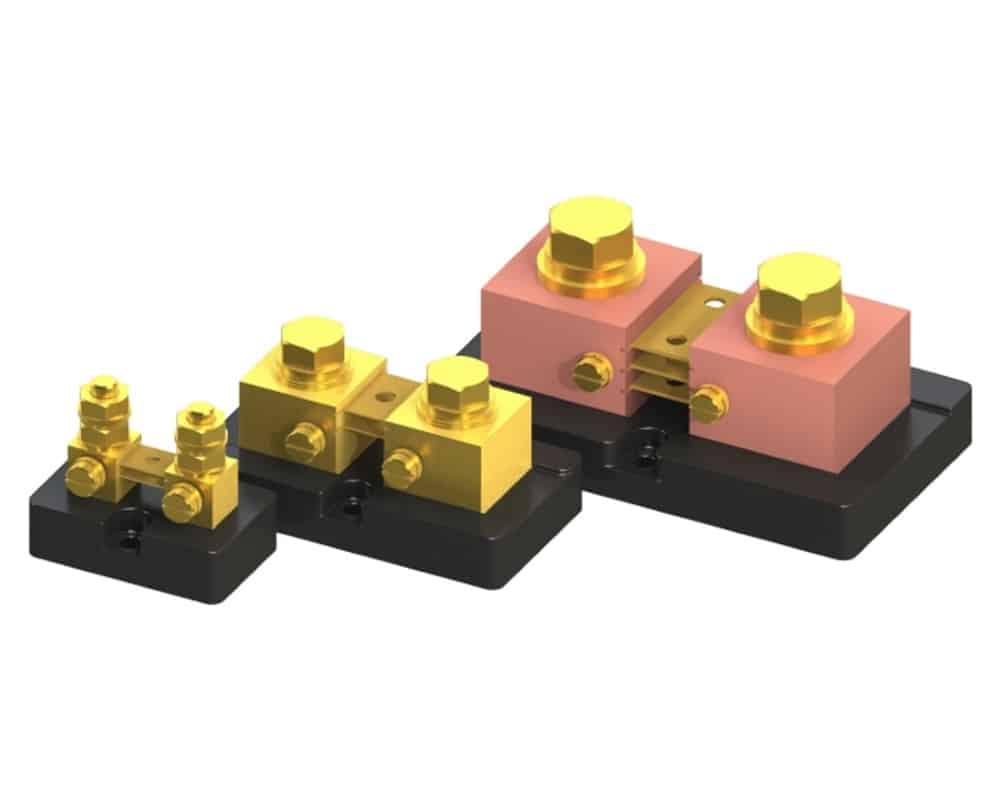

Riedon RSC Series

  • Compliant
  • Riedon

Product Features

  • Base mounted shunt
  • Output rating of 0.05V or 0.1V
  • UL listed
  • Manganin® resistive element
  • Dielectric strength 750VDC (terminal block to base)
  • Temperature range of -40° to +60°C

Applications

Description


The RSC series of precision current shunts from Riedon have been especially designed for DC ammeters and similar instruments. These base-mounted shunts offer current ratings of 800A, 1000A and 1200A with outputs of 0.05V, 0.1V or custom options available. They utilise a Manganin® resistive element and have a standard tolerance of ±0.25% with ±0.1% parts available on request. The very low resistance values required for the shunt resistors, which range from 41.7µΩ at 1200A to 125µΩ at 800A, are provided by the Manganin® resistive elements. The RSC precision shunt resistors are also UL listed and feature a 4-terminal design, separating the heavy duty load carrying connections from the voltage sensing terminals.

  • Base mounted shunt
  • Manganin® resistive element
  • 0.05V output available in select resistance values between 41.7µΩ and 62.5µΩ
  • 0.1V output available in select resistance values between 83.3µΩ and 125µΩ
  • Current rating from 800A to 1200A
  • Standard tolerance of ±0.25% with ±0.1% parts available on request
  • Dielectric strength 750VDC (terminal block to base)
  • Temperature range −40°C to +60°C
  • UL listed


Riedon RSC series base mounted shunts cover the following applications:

  • Solar generators
  • Wind power
  • Heavy industry
  • Electroplating
  • Battery chargers
  • Mining

The below table gives the full specifications for each resistor model available in the Riedon RSC base mounted shunt series:

Riedon RSC Specifications

1 Please contact us for other resistance values


Specifications

Weight 0.90000 kg

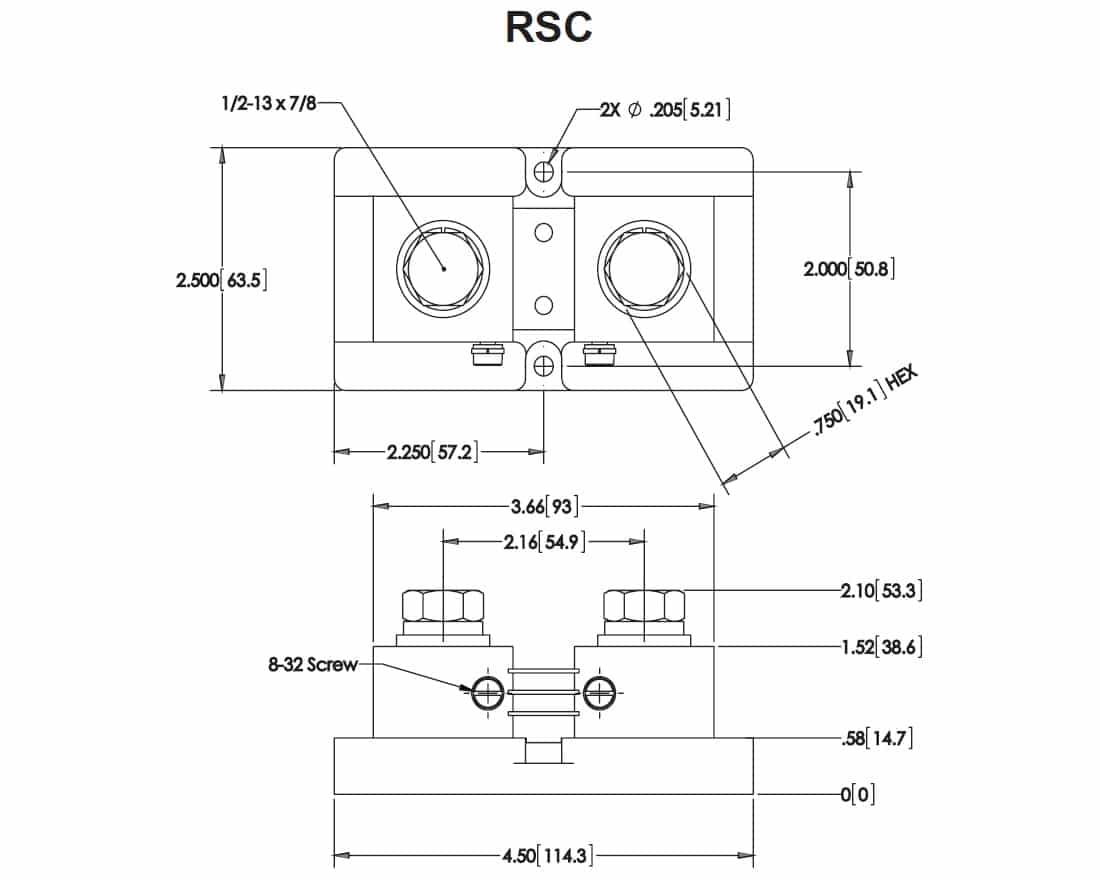

Dimensions 114.30 × 63.50 × 53.30 mm
Series / Model

Minimum Resistance

Maximum Resistance

Tolerance

Additional Features

Base mounted shuntOutput rating of 0.05V or 0.1VUL listedManganin® resistive elementDielectric strength 750VDC (terminal block to base)Operating temperature of -40° to +60°C

Current Rating

, ,

Temperature Coefficient

RoHS Compliant Product – Riedon

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
