Cissoid CXT-741Gxx Logic Gates

Cissoid CXT-741Gxx Logic Gates

The CXT-741Gxx series of high-temperature logic gates from Cissoid is part of their newly introduced CXT range of ICs designed specifically for automotive applications. These configurable devices enable 13 different logic functions: INV, BUFFER, AND, AND with inverted input, NAND, NAND with inverted input, OR, NOR, NOR with inverted input, XOR, NXOR, MUX and D Flip-Flop (please select the model covering the functions required). The CXT-741Gxx series requires voltage input of 1.65V to 5.5V, but it is compatible with 3.3V or 5V input sources. They also feature Schmitt trigger inputs for high immunity to slow changing signals and CMOS low power consumption, and are delivered in a miniature SOT-23 6-pin package at only 3.0x1.7mm. The operating temperature of CXT series of up to 175°C is beyond the requirements of automotive standard AEC-Q100 Grade 0.

  • High temperature automotive logic gates
  • Input voltage of 1.65V to 5.5V, compatible with 3.3V and 5V input sources
  • 13 different logic functions: INV, BUFFER, AND, AND with inverted input, NAND, NAND with inverted input, OR, NOR, NOR with inverted input, XOR, NXOR, MUX and D Flip-Flop
  • Output drive current of up to 16mA
  • Low power consumption
  • Schmitt trigger inputs for high immunity to slow changing signals
  • Operating temperature range of -55°C to 175°C
  • Ultraminiature SOT-23-6 package
  • AEC-Q100 Grade 0 & PPAP capable (full qualification pending, please contact us for current status)

Typical Applications for the CXT-741Gxx series from Cissoid include:

  • High power density converters
  • Motor drivers
  • Gate drivers
  • Sensor modules
  • Electronic Control Units (ECU)
  • Automotive & Industrial

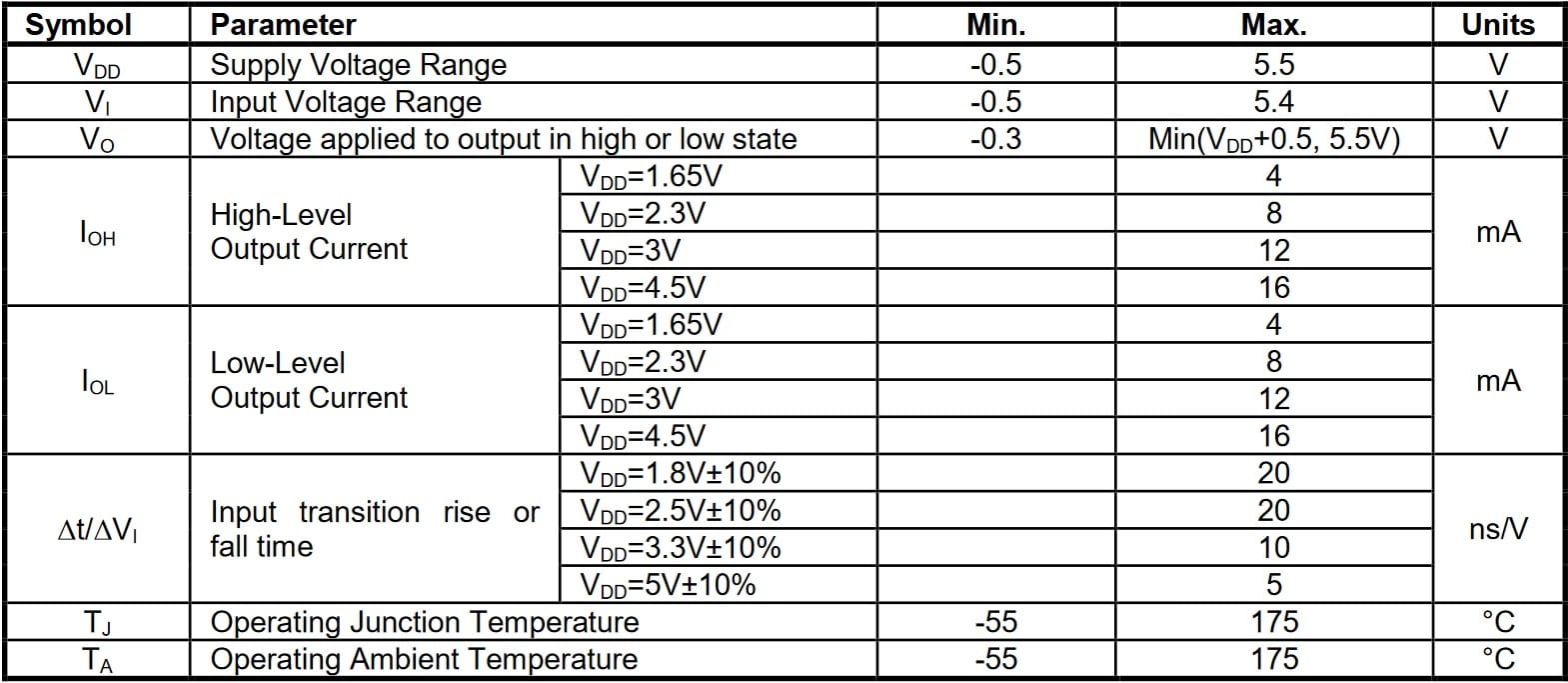

The below table gives the full specifications of the Cissoid CXT-741Gxx logic gates:

Cissoid CXT-741Gxx Specifications
Specifications
Additional Features
  • High temperature logic gates
  • Exceeds AEC-Q100 Grade 0 requirements (qualification pending)
  • 16mA output drive current
  • EDS: 2000V HBM or 200V MM
  • CMOS Low power consumption
Logic functions CXT-741G57
  • Inverter, 2-input AND, 2-input NOR with both inputs inverted, 2-input NAND with A input inverted, 2-input OR with input B inverted, 2-input NAND with B input inverted, 2-input OR Gate with A input inverted, 2-input NOR gate, 2-input AND with both inputs inverted, 2-input XNOR
CXT-741G58
  • 2-Input NAND, 2-Input OR with Both Inputs Inverted, 2-Input AND with A Input Inverted, 2-Input NOR with B Input Inverted, 2-Input AND with B Input Inverted, 2-Input NOR with A Input Inverted, 2-Input OR, 2-Input NAND with Both Inputs Inverted, 2-Input XNOR, Buffer
CXT-741G97
  • Inverter, 2 to 1 Multiplexer, 2-Input AND, 2-Input NOR with Both Inputs Inverted, 2-Input OR with A Input Inverted, 2-Input NAND with B Input Inverted, 2-Input NOR with B Input Inverted, 2-Input AND with A Input Inverted,2-Input OR
CXT-741G175
  • positive-edge triggered D Flip-Flop gate
Operating Temperature −55°C to +175°C
Package/Size SOT-23-6
Supply Voltage 1.65V to 5.5V, compatible with 3.3V and 5V input sources

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF Document Cissoid CXT-741Gxx series high temperature automotive logic gate datasheet
PDF Document Cissoid voltage regulator short-circuit protection and associated potential startup issue application note
PDF Document Selecting the correct Cissoid regulator depending on the application - application note
PDF Document Cissoid power dissipation considerations during short circuit conditions application note

This product is available fully compliant to the RoHS EU directive 2002/95/EC.
