Weidmüller SU 10.16HP/90G Series

Weidmüller SU 10.16HP/90G Series

The SU 10.16HP/90G high current, male header PCB plug in connector series from Weidmüller's Omnimate power range, has been designed with a conductor outlet direction of 90°. They have a 10.16mm pitch and a choice from 2 up to 9 poles. The SU 10.16HP/90G series from Weidmüller with a high current rating of 78.3A (IEC) and 60A (UL approved), closed housing and are suitable for wave (THT) soldering. These PCB plug-in connectors have an operating temperature range of −50°C up to +120°C .

  • High current PCB plug in connector with male header
  • Through-hole technology suitable for wave soldering
  • Number of poles available from 2 to 9
  • Solder pin length of 3.5mm
  • Pitch of 10.16mm
  • Conductor outlet direction of 90°
  • CSA and UL 1059 approved, IEC listed
  • Dimmensions for L1 from 10.16mm to 81.28mm depending on the number of poles required
  • Rated current for minimum number of poles 78.3A (IEC) and 60A (UL approved)
  • Black in colour (additional colours available on request)
  • Packaged in box
  • Operating temperature range −50°C up to +120°C

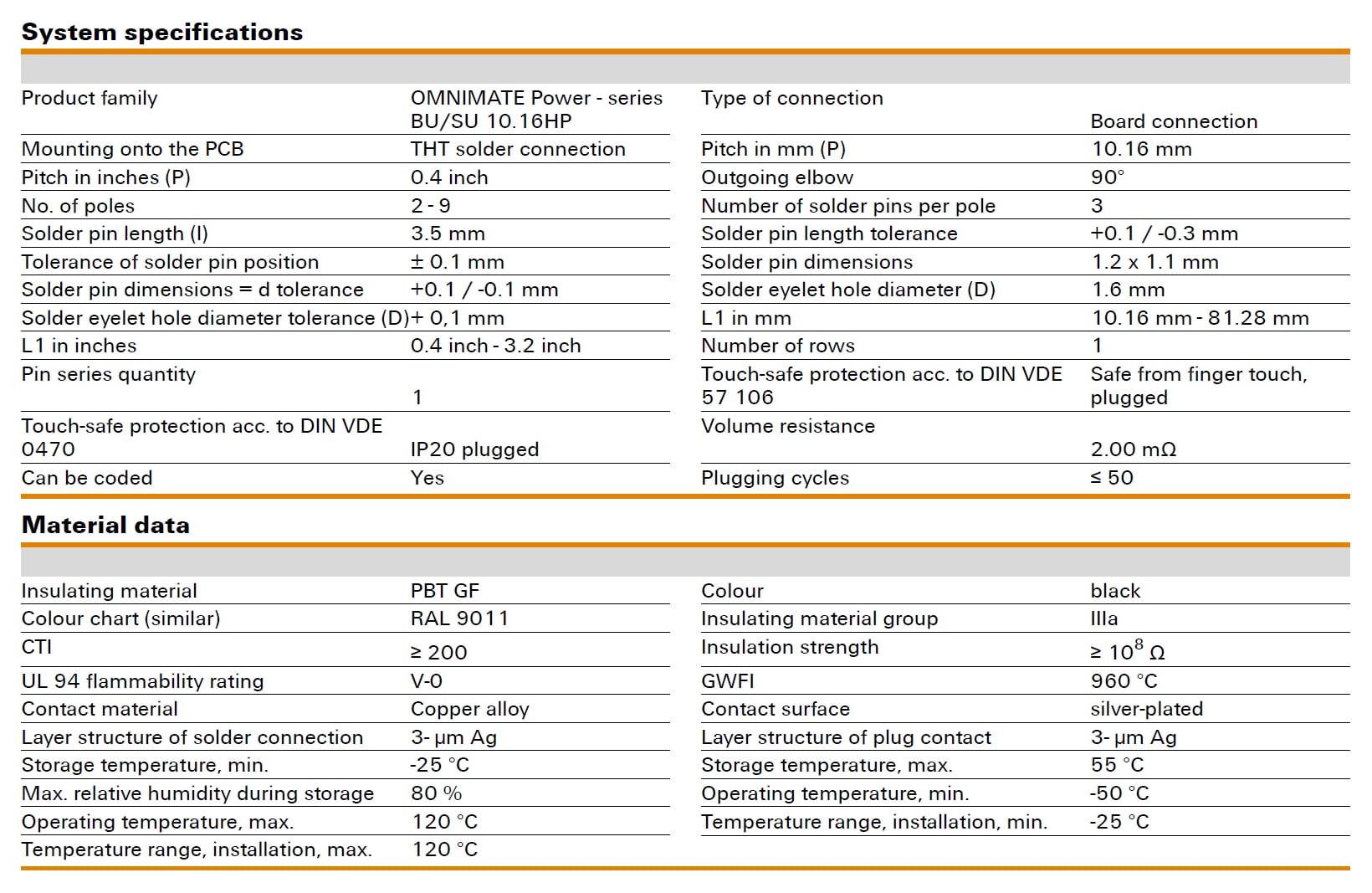

The below table gives the specifications of the Weidmüller SL-SMT 3.50/90G PCB connector series:

Weidmüller SU 10.16HP/90G Specifications Please see the relevant datasheet in the technical library for the exact specification
Specifications
Additional Features
  • High power PCB connector with male header and closed housing
  • Rated current for minimum number of poles 78.3A (IEC) and 60A (UL)
  • Dimensions of L1 10.16mm to 81.28mm (depending on the number of poles required)
  • Pin length of 3.5mm suitable for wave soldering
  • Operating temperature range −50°C to +120°C
  • CSA and UL 1059 approved, IEC listed
Colour Black
Conductor Outlet Direction 90°
Connection Type Male header
Number of Poles 2 to 9
Package/Size Through-hole
Pitch 10.16mm

We are pleased to provide you with a range of videos, please see below for the latest content available:





VIDEOS
Place holder video for YouTube video Weidmüller Omnimate power range video

A short video of Weidmüller' Device Connectivity components for power applications. A complete family of solutions for power electronics providing the highest level of performance, meeting the demands of any application and backed by superior design in service and support.
VIDEOS
Place holder video for YouTube video
Weidmüller Omnimate power range video.

A short video of Weidmüller' Device Connectivity components for power applications. A complete family of solutions for power electronics providing the highest level of performance, meeting the demands of any application and backed by superior design in service and support.

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
