The FMS precision resistor series is part of the new FMx resistor family from Isabellenhütte, filling the gap in the market for 1-5mΩ resistance values in small chip sizes. This resistor series offers chip size of 2512, excellent long-term stability and low thermoelectric voltages. The available resistance values are 1.5mΩ, 3mΩ and 6mΩ, with selection of ±1% or ±5% tolerance, and temperature coefficient under ±50 ppm/K. The Isabellenhütte FMS series also features a constant current of up to 58A (1.5mΩ), power rating of up to 5W (at 70°C) and is suitable for both reflow and IR soldering. These resistors are designed to be AEC-Q200 qualified (status pending). Their operating temperature range is between -65°C and +170°C.

  • Precision resistor with 2512 chip size
  • Continuous current load up to 58A (0.0015Ω)
  • 1.5mΩ, 3mΩ and 6mΩ resistance values are available
  • TCR value of under ±50 ppm/K (between +20°C and +60°C)
  • Applicable temperature range from -65°C to +170°C
  • Tolerance ±1.0% and ±5.0%
  • Excellent long term stability
  • Power rating up to 5W at 70°C (depending on the resistance value required)
  • Suitable for IR and reflow soldering
  • Conforms to AEC-Q200 (qualification pending)

Typical applications for the FMS series include:

  • Current sensor for power hybrid applications
  • Control systems for the automotive market
  • Frequency converters and power modules
  • Switch mode power supplies

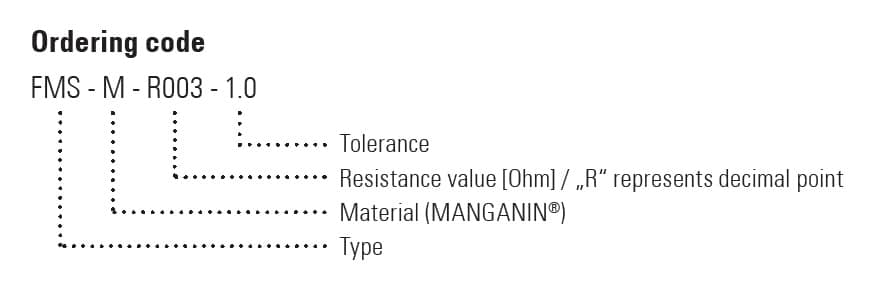

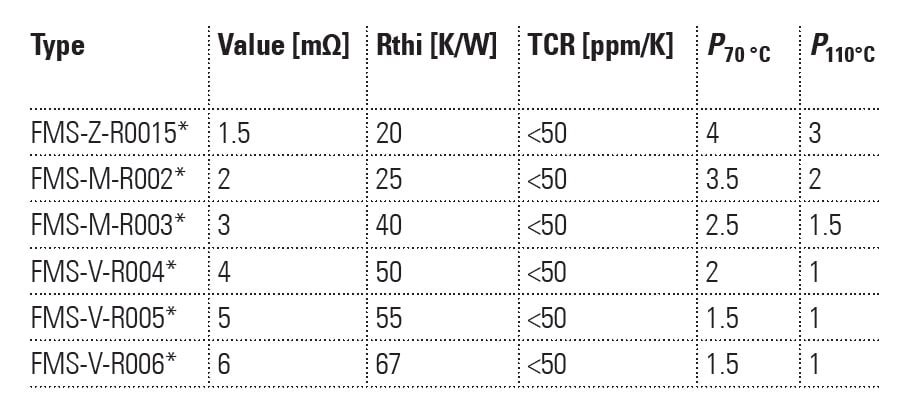

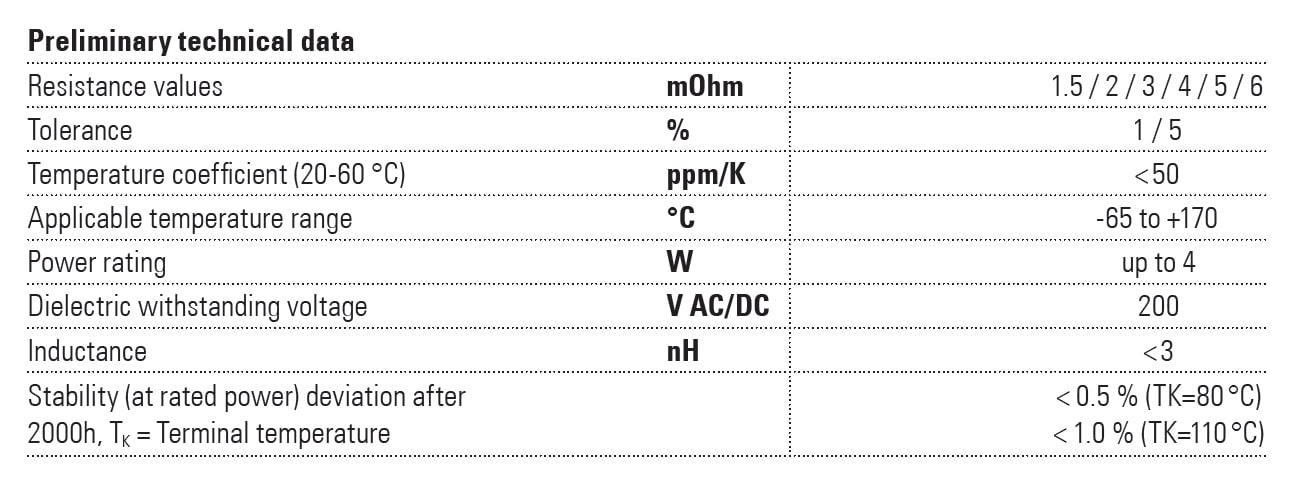

The below table gives an overview of the specifications for the Isabellenhütte FMS series:

Isabellenhütte FMS Specifications
Specifications
Additional Features
  • Surface-mount precision resistor
  • AEC-Q200 compliant (qualification pending)
  • Excellent long term stability
  • Continuous current load up to 58A (0.0015Ω)
  • IR and Reflow solderable
  • New for 2019: the only product series offering these resistance ranges in a standard 2512 package
Maximum Power Rating up to 5W (at 70°C)
Maximum Resistance 6mΩ
Minimum Resistance 1.5mΩ
Operating Temperature -65° to +170°C
Package/Size 2512
TCR <50 ppm/K (between +20°C and +60°C)
Tolerance
  • ±1.0%
  • ±5.0%

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:
