The BVT resistor series from Isabellenhütte offers 2-terminal surface-mount connection technology for current sensing applications. Developed with a high application temperature range of -65° to +170° due to its special design, with a power rating up to 6W and selective resistance values available are between 0.0003Ω and 0.068Ω. The BVT series from Isabellenhütte offers excellent long term stability.
  • 2-Terminal precision resistor with 2512 chip size
  • Suitable for 4 pad layout
  • Continuous current load up to 100A (0.0003Ω)
  • Select resistance values between 0.0003Ω and 0.0068Ω are available
  • TCR value from ±50 ppm/K (between +20°C and +60°C)
  • High application temperature range from -65°C to +170°C due to its special design
  • Tolerance ±1.0% and ±5.0% (depending on the resistance value required)
  • Excellent long term stability
  • Power rating up to 6W at +70°C (depending on the resistance value required)
  • AEC-Q200 qualified

Typical applications for the BVT series include:

  • High current applications for the automotive market
  • Current sensor for power hybrid applications
  • Frequency converters and power modules

The below tables give an overview of the specifications for the Isabellenhütte BVT series as well as the standard parts available:

Isabellenhütte BVT Specifications
Specifications
Additional Features
  • 2512 chip size
  • 2-terminal surface-mount resistor
  • Suitable for 4 pad layout
  • AEC-Q200 qualified
  • Applicable temperature range -65°C to +170°C
  • Excellent long term stability
  • Continuous current load up to 100A (0.0003Ω)
  • Heavy copper connections
Maximum Power Rating
  • up to 6W (at 70°C)
  • up to 3W (at +100°C)
Maximum Resistance
  • 0.0068Ω
Minimum Resistance
  • 0.0003Ω
TCR
  • from ±50 ppm/K (between +20°C and +60°C)
Tolerance
  • ±1.0%
  • ±5.0%

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF DocumentIsabellenhütte BVT 2-terminal surface-mount precision resistor series datasheet
PDF DocumentIsabellenhütte low-ohmic and power resistors product catalogue







VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors
VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors

The BVT resistor series is available with various options including standard resistance values and tolerances. The information below gives an example of the part numbering system used for these resistors and the standard options available.

Below is an example of the part number break down for the BVT resistor series:

BVT Part Number Example





The following table highlights the standard resistance values available for the BVT resistor series:

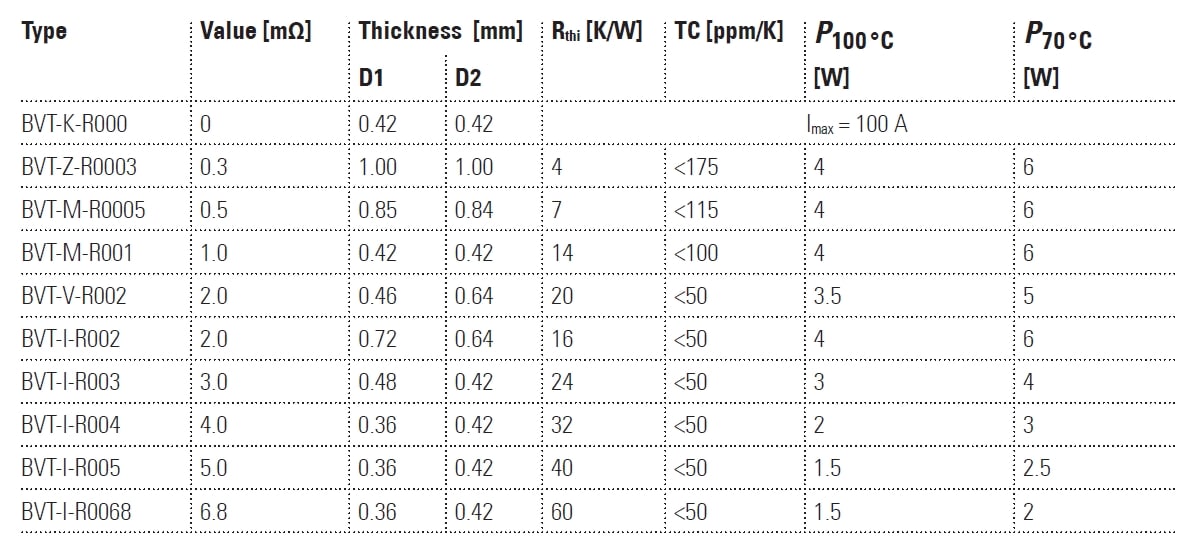

BVT Series Available Parts

Material type: I=ISAOHM®, K=SF-Copper Tinned, M=MANGANIN®, Z=ZERANIN®30, V=NOVENTIN®

RoHS Compliance

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
