Isabellenhütte CMK Series

Isabellenhütte CMK Series
The CMK surface-mount current sensing resistor series from Isabellenhütte has been developed to offer outstanding price-performance ratio. The CMK series with a resistance range of 0.01Ω to 0.1&Omega offers a temperature coefficient of below 50ppm/K (between +20°C and +60°C) over the entire ohmic range, tolerances as low as ±1% as well as good long term stability. The CMK model offers these capabilities in a 1206 chip size.
  • 2-terminal surface-mount resistor for medium power requirements
  • Resistance range available 0.01Ω to 0.1 Ω
  • Power rating 1W (at +70°C)
  • Low TCR of <50 ppm/K (between +20°C and +60°C)
  • Constant current up to 10A (0.1Ω resistor)
  • tolerance options available ±1% and ±5%
  • Applicable temperature range -60°C to +170°C
  • 1206 chip size
  • AEC-Q200 qualified

Typical applications for the CMK series include:

  • Current sensor for power hybrid applications
  • Control systems for the automotive market
  • Power modules
  • Frequency converters
  • Switch mode power supplies
  • Driver for LED light systems

The below table gives an overview of the specifications for Isabellenhütte CMK series

Isabellenhütte CMP Specifications
Specifications
Additional Features
  • 1206 chip size
  • 2-terminal surface-mount resistor
  • Constant current up to 10A (0.01Ω)
  • AEC-Q200 qualified
  • Applicable temperature range -60°C to +170°C
  • Mounting: Reflow and IR soldering
  • High pulse power rating
Maximum Power Rating
  • 1W (at +70°C)
  • 0.5W (at +130°C)
Maximum Resistance
  • 0.1Ω
Minimum Resistance
  • 0.01Ω
TCR
  • <50 ppm/K (between +20°C and +60°C)
Tolerance
  • ±1.0%
  • ±5.0%

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF DocumentIsabellenhütte CMK surface-mount precision resistor series datasheet
PDF DocumentIsabellenhütte low-ohmic and power resistors product catalogue







VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors
VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors

The CMK resistor series is available with various options including standard resistance values and tolerances. The information below gives an example of the part numbering system used for these resistors and the standard options available.

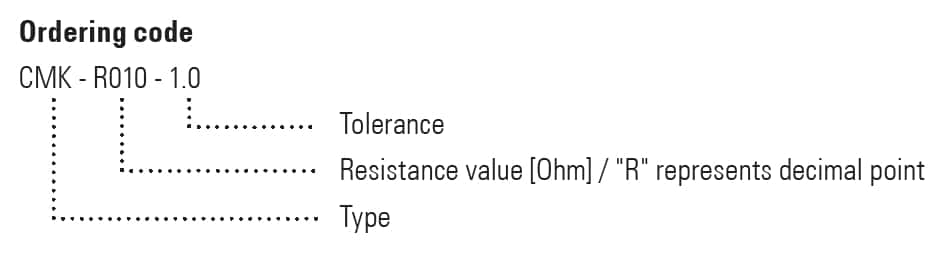

Below is an example of the part number break down for the CMK resistor series:

CMK Part Number Example

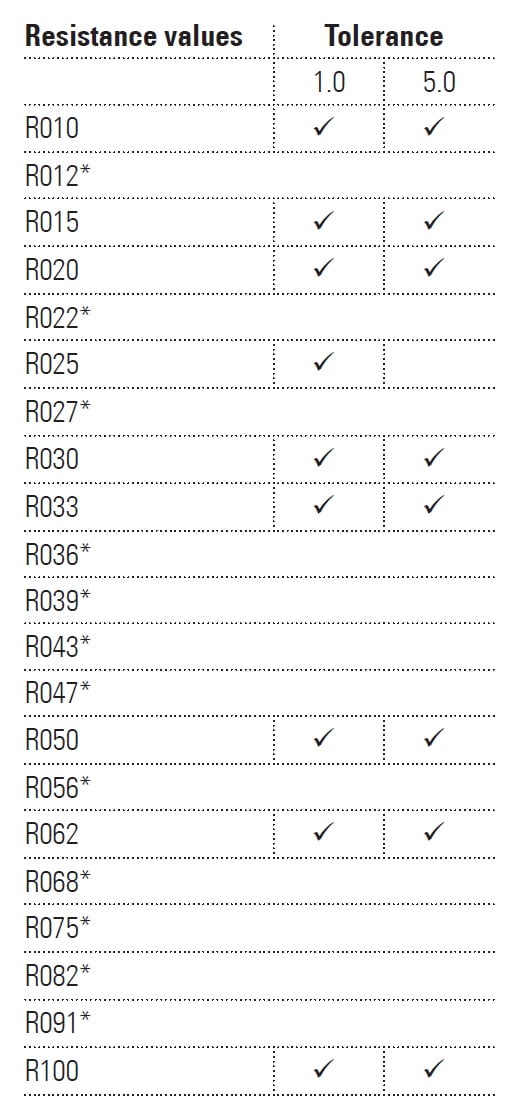

The following table highlights the standard resistance values and tolerances available for the CMK resistor series:

CMK Series Available Parts

RoHS Compliance

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

  • Views: 296
  • Product Code: Isabellenhütte CMK Series
  • SKU: Isabellenhütte CMK Series
  • Availability: In Stock
0 Product(s) Sold
  • £0.00
  • Ex Tax: £0.00

Available Options

Tags: CMK-R010-1.0, CMK-R010-5.0, CMK-R020-1.0, CMK-R020-5.0, CMK-R025-1.0, CMK-R030-1.0, CMK-R030-5.0, CMK-R033-1.0, CMK-R033-5.0, CMK-R050-1.0, CMK-R050-5.0, CMK-R100-1.0, CMK-R100-5.0, Isabellenhuette
