Isabellenhütte PMH-D Series

Isabellenhütte PMH-D Series
The PMH-D series from Isabellenhütte is a bondable high power resistor, with gold plated contact surface with 2 and 4-terminal surface-mount Kelvin connection technology. Developed with chip size of 2512, resistance value of 0.002Ω, with a 5W permanent power rating and TCR of <50 ppm/K (between +20°C and +60°C). The PMH-D series from Isabellenhütte also is with reverse side covered with gold flash (0.1 µm typ.).
  • Gold plated bondable high power resistor
  • 2 and 4-terminal surface-mount precision resistor
  • 2512 chip size
  • Constant current up to 32A (0.005Ω)
  • Resistance value 0.002Ω
  • TCR value <50 ppm/K (from +20°C to +60°C)
  • Applicable temperature range from -55°C to +170°C
  • Tolerance values available ±5.0%
  • Hybrid assembly: bonding and gluing
  • Power rating 5W
  • Au-plated bond pads (0.1 µm typ.)
  • Resistor with Kelvin connection
  • AEC-Q200 qualified

Typical applications for the PMH-D series include:

  • Current sensor for power hybrid applications
  • High density integration
  • Frequency converters and power modules

The below table gives an overview of the specifications for the Isabellenhütte PMH-D series:

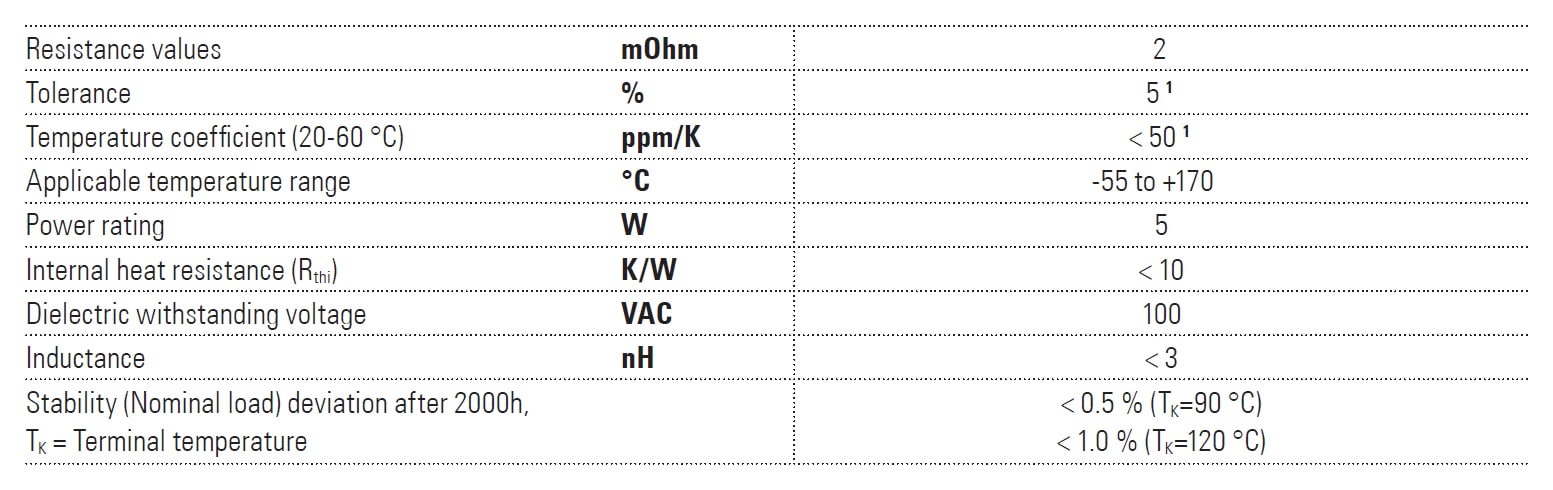

Isabellenhütte PMH-D Specifications

¹ Exact value depends on bonding position

Specifications
Additional Features
  • 2512 chip size
  • Gold plated bondable high power resistor
  • 2 and 4-terminal surface-mount resistor
  • Applicable temperature range -55°C to +170°C
  • Hybrid assembly: bonding and gluing
  • Continuous current up to 50A
  • Resistor with Kelvin connection
Maximum Power Rating
  • 5W
Maximum Resistance
  • 0.002Ω
Minimum Resistance
  • 0.002Ω
TCR
  • <50 ppm/K (between +20°C and +60°C)
Tolerance
  • ±5.0%

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF DocumentIsabellenhütte PMH-D hybrid assembly 4-terminal resistor series datasheet
PDF DocumentIsabellenhütte low-ohmic and power resistors product catalogue







VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors
VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors

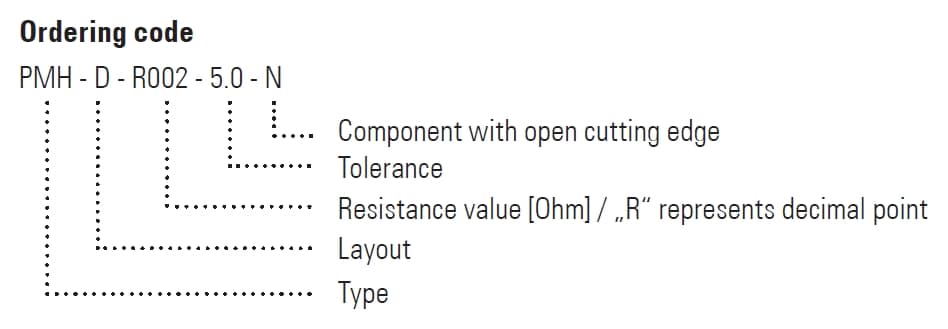

Below is an example of the part number break down for the PMH-D resistor series:

PMH-D Part Number Example

RoHS Compliance

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
