IDS ARCA 4050

  • Fibox
FCX_INNER_DOOR2

Product Features

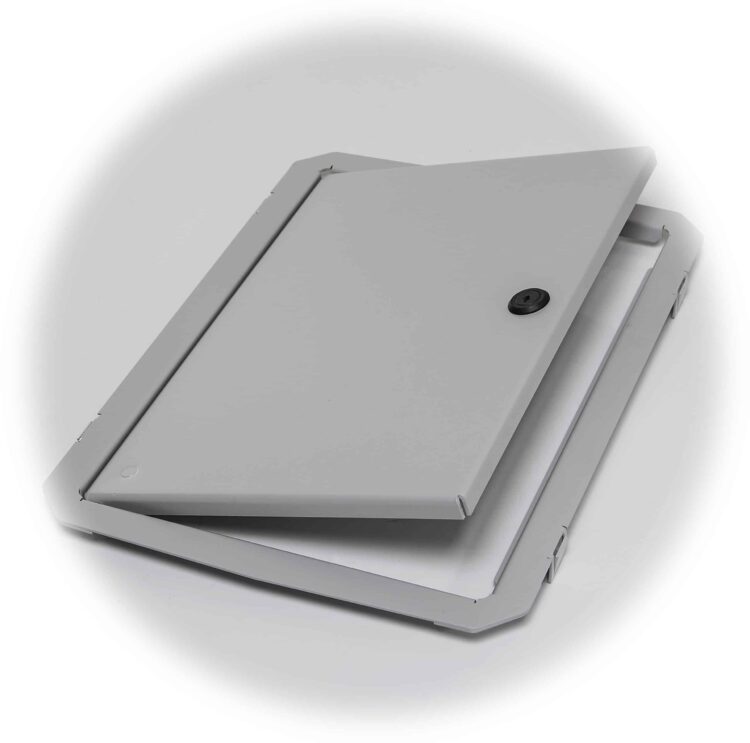

IDS ARCA 4050 Inner door set, For ARCA 405021 or 504021

Specifications

Dimensions 385 x 285 x 35mm
Product Type

Series / Model

Material Type

IDS ARCA 4050

FCX_INNER_DOOR2
Quantity
Add to Compare
Datasheet
  • Compliant

Series Products

Enclosures

IDS ARCA 4050 Series Products
 Product nameSKUDimensionsProduct TypeColourMaterial TypeIngress ProtectionImpact ResistanceUL RatingDatasheetAdd to enquiry
ARCA 203015 Wall Cabinet8120020200 x 300 x 150mmARCA IEC EnclosuresGreyPolycarbonateIP66IK10UL 94 5VA, UL508A Add to Enquiry
ARCA 302015 Wall Cabinet8120002300 x 200 x 150mmARCA IEC EnclosuresGreyPolycarbonateIP66IK10UL 94 5VA, UL508A Add to Enquiry
ARCA 303021 Wall Cabinet8120005300 x 300 x 210mmARCA IEC EnclosuresGreyPolycarbonateIP66IK10UL 94 5VA, UL508A Add to Enquiry
ARCA 304015 Wall Cabinet8120022300 x 400 x 150mmARCA IEC EnclosuresGreyPolycarbonateIP66IK10UL 94 5VA, UL508A Add to Enquiry
ARCA 304021 Wall Cabinet8120023300 x 400 x 210mmARCA IEC EnclosuresGreyPolycarbonateIP66IK10UL 94 5VA, UL508A Add to Enquiry

Connectors & Enclosures

IDS ARCA 4050 Series Products
 Product nameSKUDimensionsProduct TypeColourMaterial TypeIngress ProtectionImpact ResistanceUL RatingDatasheetAdd to enquiry
ARCA 403015 Wall Cabinet8120006400 x 300 x 150mmARCA IEC EnclosuresGreyPolycarbonateIP66IK10UL 94 5VA, UL508A Add to Enquiry
ARCA 403021 Wall Cabinet8120007400 x 300 x 210mmARCA IEC EnclosuresGreyPolycarbonateIP66IK10UL 94 5VA, UL508A Add to Enquiry
ARCA 404021 Wall Cabinet8120009400 x 400 x 210mmARCA IEC EnclosuresGreyPolycarbonateIP66IK10UL 94 5VA, UL508A Add to Enquiry
ARCA 405021 Wall Cabinet8120025400 x 500 x 210mmARCA IEC EnclosuresGreyPolycarbonateIP66IK10UL 94 5VA, UL508A Add to Enquiry
ARCA 504021 Wall Cabinet8120011500 x 400 x 210mmARCA IEC EnclosuresGreyPolycarbonateIP66IK10UL 94 5VA, UL508A Add to Enquiry
ARCA 505021 Wall Cabinet8120032500 x 500 x 210mmARCA IEC EnclosuresGreyPolycarbonateIP66IK10UL 94 5VA, UL508A Add to Enquiry
ARCA 604021 Wall Cabinet8120012600 x 400 x 210mmARCA IEC EnclosuresGreyPolycarbonateIP66IK10UL 94 5VA, UL508A Add to Enquiry
ARCA 705030 Wall Cabinet8120017700 x 500 x 300mmARCA IEC EnclosuresGreyPolycarbonateIP66IK10UL 94 5VA, UL508A Add to Enquiry
ARCA 806030 Wall Cabinet8120019800 x 600 x 300mmARCA IEC EnclosuresGreyPolycarbonateIP66IK10UL 94 5VA, UL508A Add to Enquiry

Accessories

IDS ARCA 4050 Series Products
 Product nameSKUDimensionsProduct TypeColourMaterial TypeIngress ProtectionImpact ResistanceUL RatingDatasheetAdd to enquiry
MPP ARCA 30308120752250 x 250 x 2mmMounting Plates & Din Rails Galvanised Steel    Add to Enquiry
MPP ARCA 40308120753350 x 250 x 2mmMounting Plates & Din Rails Galvanised Steel    Add to Enquiry
MPP ARCA 40408120754350 x 350 x 2mmMounting Plates & Din Rails Galvanised Steel    Add to Enquiry
MPP ARCA 50408120755450 x 350 x 2mmMounting Plates & Din Rails Galvanised Steel    Add to Enquiry
MPP ARCA 50508120750450 x 450 x 2mmMounting Plates & Din Rails Galvanised Steel    Add to Enquiry
MPP ARCA 60808120935530 x 730 x 2mmMounting Plates & Din Rails Galvanised Steel    Add to Enquiry
MPS ARCA 30208120731250 x 150 x 2mmMounting Plates & Din Rails Galvanised Steel    Add to Enquiry
MPS ARCA 30308120732250 x 250 x 2mmMounting Plates & Din Rails Galvanised Steel    Add to Enquiry
MPS ARCA 40308120733350 x 250 x 2mmMounting Plates & Din Rails Galvanised Steel    Add to Enquiry
MPS ARCA 40408120734350 x 350 x 2mmMounting Plates & Din Rails Galvanised Steel    Add to Enquiry
MPS ARCA 50408120735450 x 350 x 2mmMounting Plates & Din Rails Galvanised Steel    Add to Enquiry
MPS ARCA 50508120730450 x 450 x 2mmMounting Plates & Din Rails Galvanised Steel    Add to Enquiry
MPS ARCA 60408120736550 x 350 x 2mmMounting Plates & Din Rails Galvanised Steel    Add to Enquiry
MPS ARCA 70508120738630 x 430 x 2mmMounting Plates & Din Rails Galvanised Steel    Add to Enquiry
DRS ARCA 3030218120763285 x 285 x 35mmMounting Plates & Din Rails Galvanised Steel    Add to Enquiry
DRS ARCA 4040218120767385 x 385 x 35mmMounting Plates & Din Rails Galvanised Steel    Add to Enquiry
DRS ARCA 5040218120769485 x 385 x 35mmMounting Plates & Din Rails Galvanised Steel    Add to Enquiry
DRS ARCA 5050218120778485 x 485 x 35mmMounting Plates & Din Rails Galvanised Steel    Add to Enquiry
IDS ARCA 20308120910185 x 285 x 35mmInnerdoor Front Plates & Flanges Aluminium    Add to Enquiry
IDS ARCA 30308120712280 x 280 x 30mmInnerdoor Front Plates & Flanges Aluminium    Add to Enquiry
IDS ARCA 30408120911285 x 385 x 35mmInnerdoor Front Plates & Flanges Aluminium    Add to Enquiry
IDS ARCA 40408120714380 x 380 x 30mmInnerdoor Front Plates & Flanges Aluminium    Add to Enquiry
IDS ARCA 40508120912385 x 285 x 35mmInnerdoor Front Plates & Flanges Aluminium    Add to Enquiry
IDS ARCA 40608120913385 x 585 x 35mmInnerdoor Front Plates & Flanges Aluminium    Add to Enquiry
IDS ARCA 50508120710480 x 480 x 30mmInnerdoor Front Plates & Flanges Aluminium    Add to Enquiry
IDS ARCA 50708120914485 x 385 x 35mmInnerdoor Front Plates & Flanges Aluminium    Add to Enquiry
IDS ARCA 60808120915585 x 785 x 35mmInnerdoor Front Plates & Flanges Aluminium    Add to Enquiry
PMK ARCA 208120840mmPole Mounting Kits Galvanised Steel    Add to Enquiry
PMK ARCA 308120841mmPole Mounting Kits Galvanised Steel    Add to Enquiry
PMK ARCA 408120842mmPole Mounting Kits Galvanised Steel    Add to Enquiry
PMK ARCA 708120845mmPole Mounting Kits Galvanised Steel    Add to Enquiry
PMK ARCA 808120846mmPole Mounting Kits Galvanised Steel    Add to Enquiry
WMK ARCA 10 small8120830mmWall Mounting & Hinges Galvanised Steel    Add to Enquiry

ARCA Series Description

The ARCA is an injection-moulded wall-mount enclosure made from glass fiber reinforced polycarbonate. Available in sizes from 12”x 8”x 6” (300x200x150) up to 32”x 24”x 12” (800x600x300), UL Type 4, 4x, 12 &13, IP66-rated and suitable for outdoor use (>25 years UV exposure) Corrosion Resistant and offers the strength of steel at a fraction of the weight. The modular accessories are fast and easy to install, saving time and money. Unlike comparable GRP (polyester) enclosures, ARCA won’t delaminate (bloom) or lose strength when installed outdoors. Its unique solutions offer attributes superior to competitors in strength, lightweight and corrosion resistance, ease of installation, high NEMA, IP and IK ratings along with high-temperature performance.
Product Features
  • Enclosure Material: Polycarbonate
  • Halogen Free
  • UV Resistant
  • Flammability Rating: UL 94 5VA
  • Ingress protection: IP66
  • Impact Resistance: IK10_IK08
  • Environmental Rating: NEMA__1_4_4X_12_13
  • UL508A
