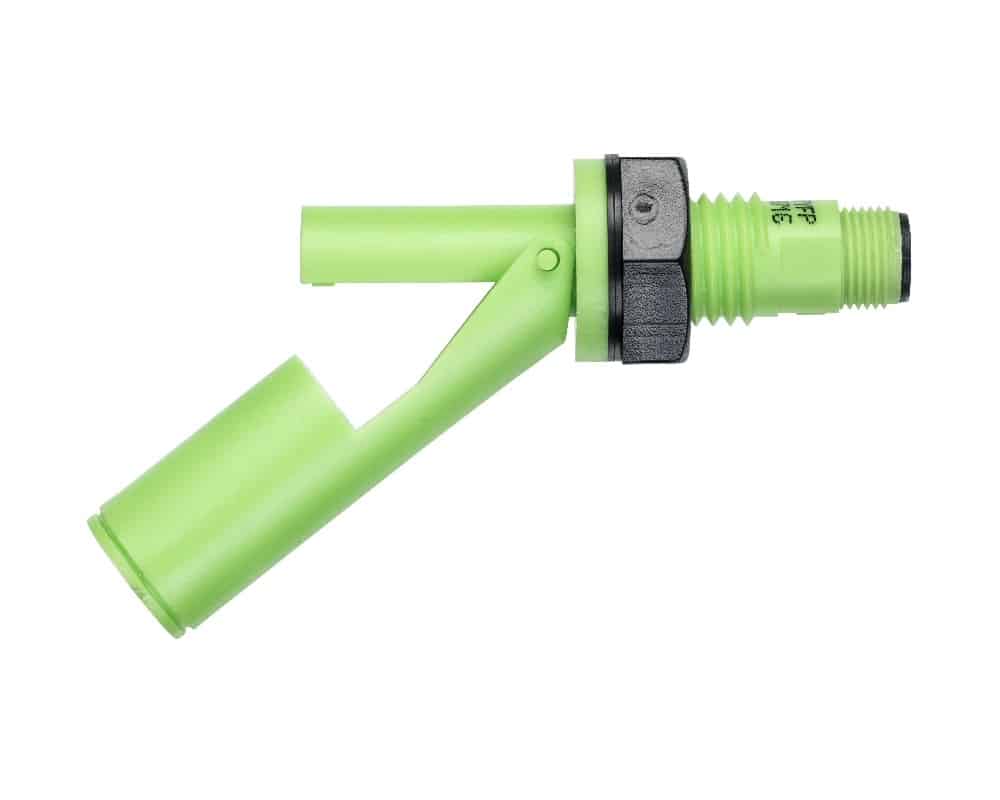

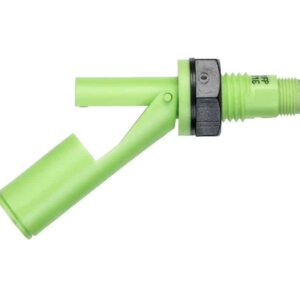

Cynergy3 RSF47 PVDF Compact Internal Fitting Float Switch Series

  • Cynergy3

Product Features

  • Polyvinylidene Fluoride (PVDF) Compact Internal Fitting Float Switch Series
  • Compact design for size sensitive applications
  • NSF & UL approved
  • UL

Applications

  • Test and Measurement

Description

The RSF47 Polyvinylidene Fluoride (PVDF) float switches are part of the RSF40 series of compact internal fittings. It offers a number of options including choice of maximum power (25VA or 100VA) and option of flying leads or M12 connector. The switch action may be reversed by rotating the switch by 180°. The RSF47 float switches come with nitrile gasket as standard, are UL and NSF approved and can be operated in temperature range between -10°C and +105°C.

  • Compact Internal Fitting Float Switches
  • Green Polyvinylidene Fluoride (PVDF) body, supplied with nitrile or viton gasket (see Chemical Compatibility sheet in Technical library for suitability with liquid media)
  • Switching action reversible by rotating the device
  • Selection of maximum power rating – 25VA or 100VA
  • Temperature range between -10°C and +105°C

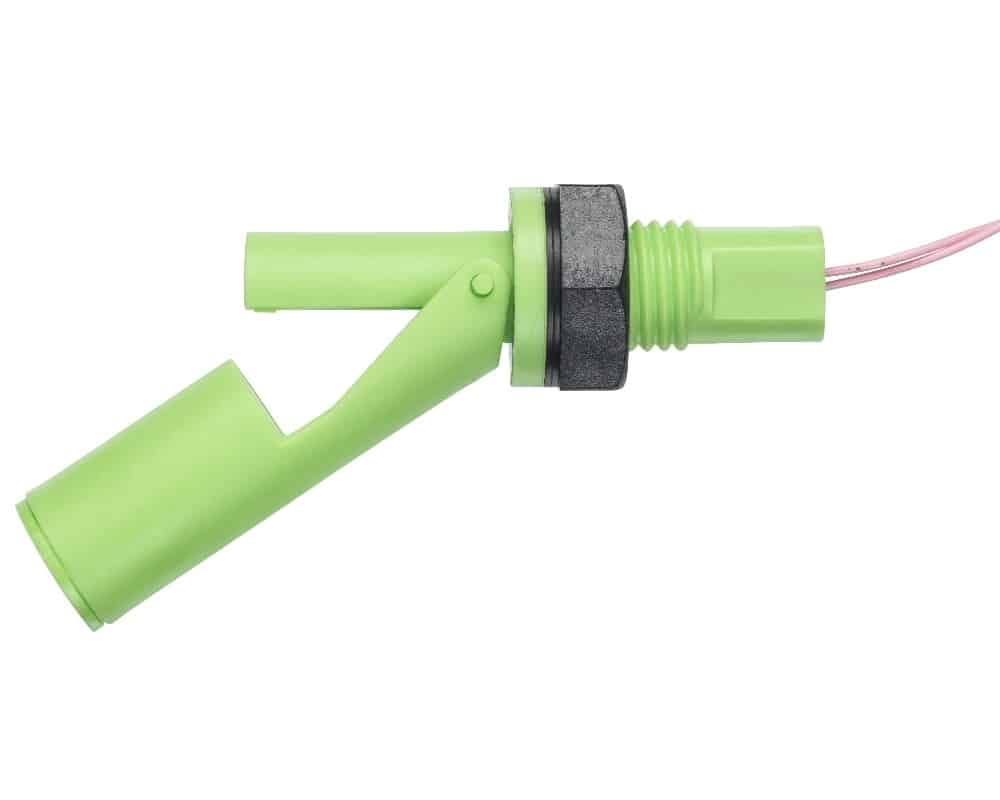

  • Selection of flying leads or M12 electrical connection



Typical applications for the Cynergy3 RSF40 series of float switches include:

  • Size sensitive applications
  • Vending machines
  • Commercial washing machines
  • Evaporator units



Customisation is available on this product – speak to our technical sales team to discuss your requirement.

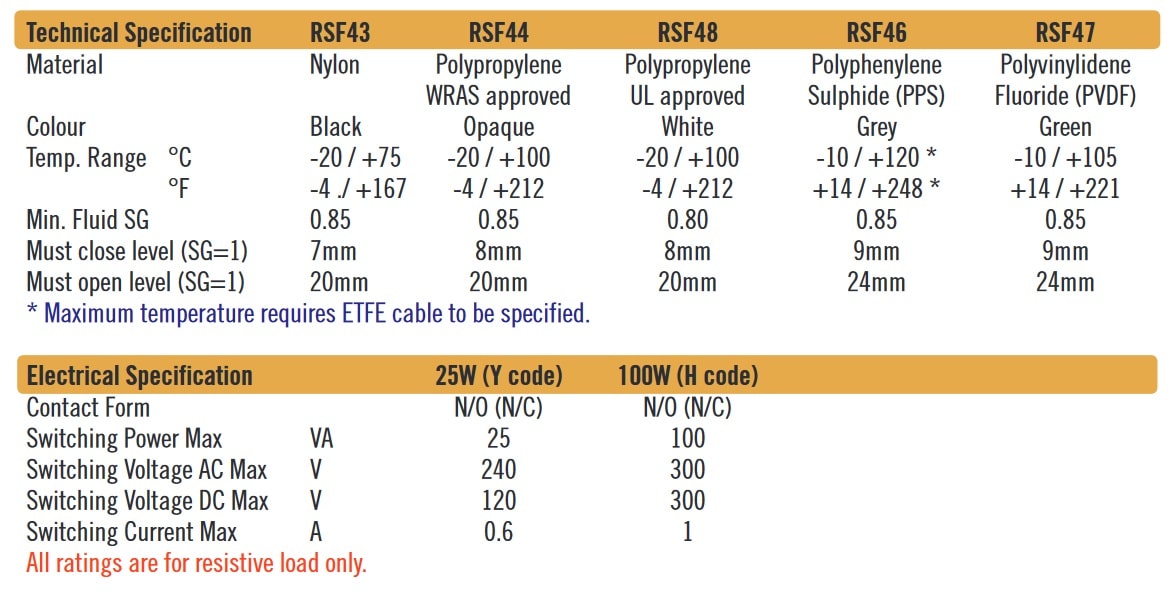

The below table gives the full specifications for the Cynergy3 RSF40 series including the RSF47 switches:

Cynergy3 RSF40 series specifications



Specifications

Weight 16.00000 kg

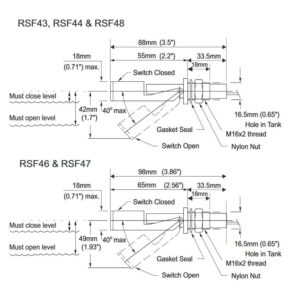

Dimensions 16.50 x 16.50 x 98.00mm
Series / Model

Power Rating

,

Temperature Range (°C)

Colour

Termination / Connection Type

,

Switching Power

,

Contact Form

Gasket Option

,

RoHS Compliant Product – Cynergy3

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

Cynergy3 RSF40 series Ordering Info

Below is a list of available part numbers within the Cynergy3 RSF40 Float Switch Series:

Cynergy3 RSF40 Series ordering information

Cynergy3 RSF40 Series technical library

We are pleased to provide you with a range of additional content including product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Cynergy3 RSF40 Compact Internal Fitting Float Switch Series Datasheet
Chemical Compatibility sheet for Cynergy3 Flow and Float Switches
How to select a correct float switch
Installation notes for Cynergy3 Float Switches
How to protect reed switch contacts from specific loads
Cynergy3 Liquid Sensors Application note: Pump Control Circuit for Automatic Tank Filling 1
Cynergy3 Liquid Sensors Application note: Pump Control Circuit for Automatic Tank Filling 2
Cynergy3 Liquid Sensors Application note: Pump Control Circuit for Automatic Tank Emptying
