Riedon PFC Series

Riedon PFC Series
Riedon PFC Series
Riedon PFC Series
  • Riedon

Product Features

  • Power thick film SMD resistor
  • Power rating of 25W
  • Very low inductance
  • Very low profile
  • Temperature range of −55° to +155°C

Applications

  • Power Control
  • Exempt

Description

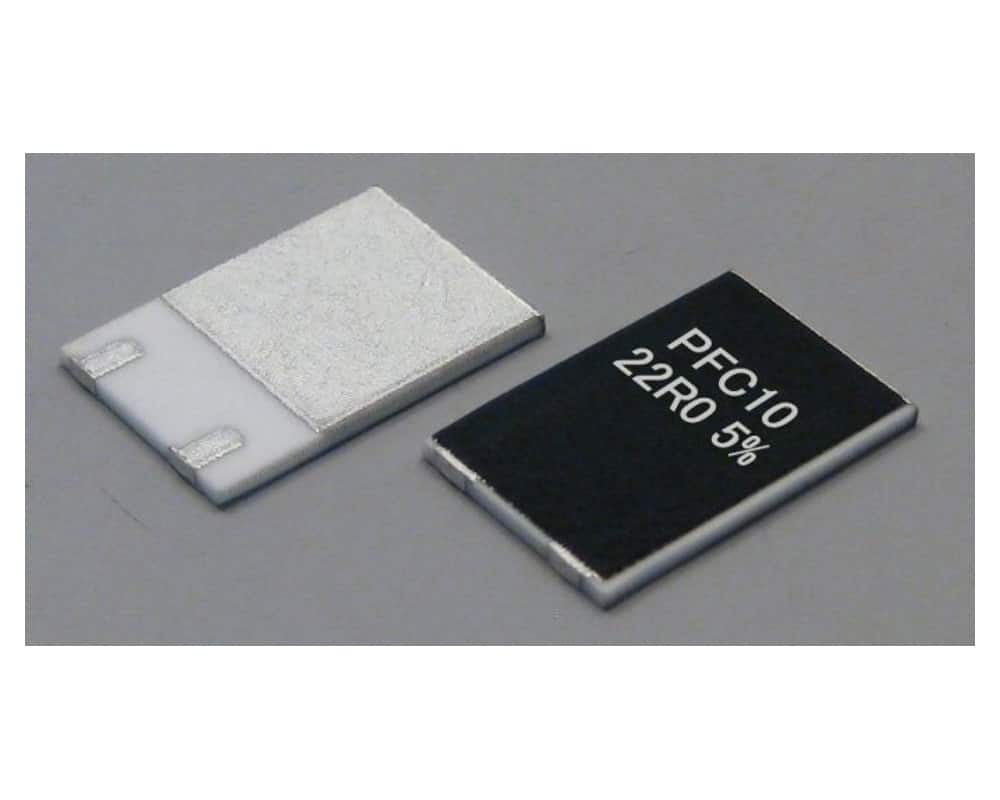

The PFC thick film SMD power resistor series from Riedon offers a very low profile and utilises the D-PAK Foot Pattern. The resistance values range from 0.1Ω to 51kΩ with a power rating of 25W (35W achievable with active cooling on a heat sink). The PFC series from Riedon offers a very low inductance of 15nH, a tolerance as low as 1% and TCR of 100ppm/°C.

  • Thick film SMD power resistors
  • Power rating of 25W with heat sink (35W achievable with active cooling on heat sink)
  • Resistance range 0.1Ω to 51kΩ, nominal E24+ (includes 2.5, 4.0, 5.0, 8.0 and 16)
  • Resistance values nominal E24+ (including 2.5, 4.0, 5.0, 8.0 and 16)
  • Inductance as low as 15nH
  • Standard tolerance options ±1% or ±5% (others available upon request)
  • TCR of ±100ppm/°C
  • Temperature range −55°C to +155°C
  • Isolated back plate


The below table gives the full specifications for each resistor model available in the Riedon PFC resistor series:

Riedon PFC Specifications

1 Power rating is 2.5 watt using a simple footprint and without heat sink

2 Overload rating is permissible for continuous duty with back solder pad temperature not exceeding 25°C


Specifications

Weight 0.32400 kg

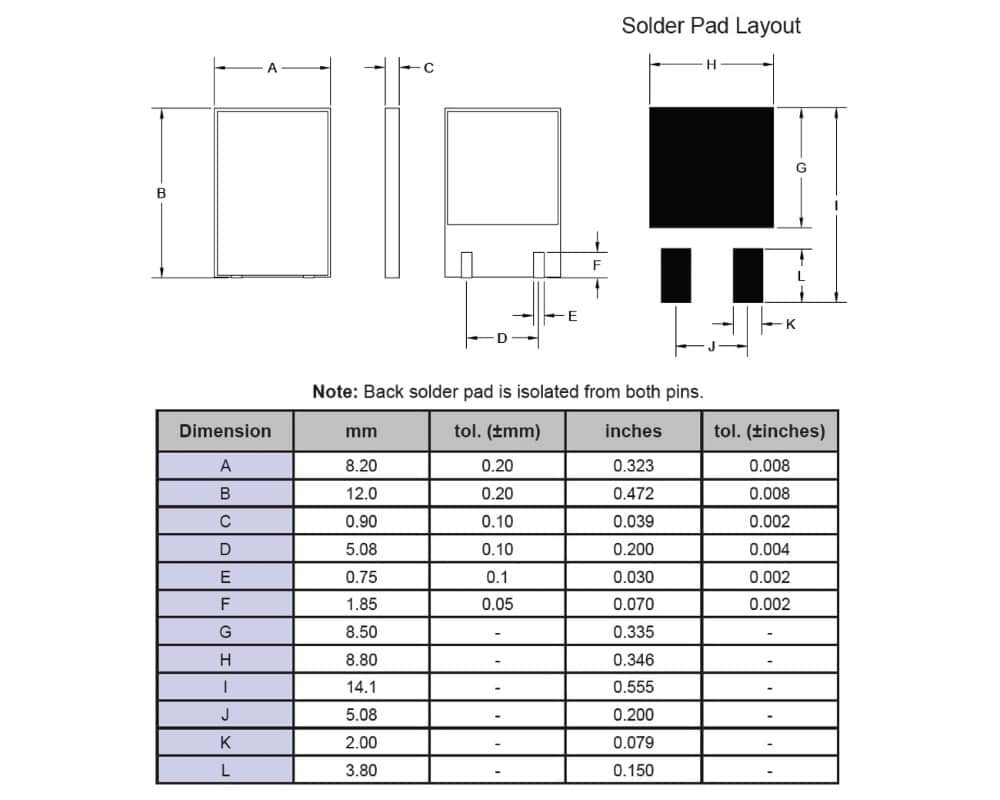

Dimensions 8.20 × 12.00 × 0.90 mm
Series / Model

Minimum Resistance

Maximum Resistance

Tolerance

,

Package / Size

Resistance Value

Temperature Coefficient

RoHS Compliant Product – Riedon

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
