Riedon MSR-1 Series

Riedon MSR-1 Series
Riedon MSR-1 Series
Riedon MSR-1 Series
Riedon MSR-1 Series
  • Riedon

Product Features

  • Through-hole bare metal element with an all-welded construction
  • Low inductance (<10nH)
  • Ideal for current sensing and shunt applications
  • Temperature range of up to +275°C
  • Maximum rated operating temperature of +85°C

Applications

  • Compliant

Description

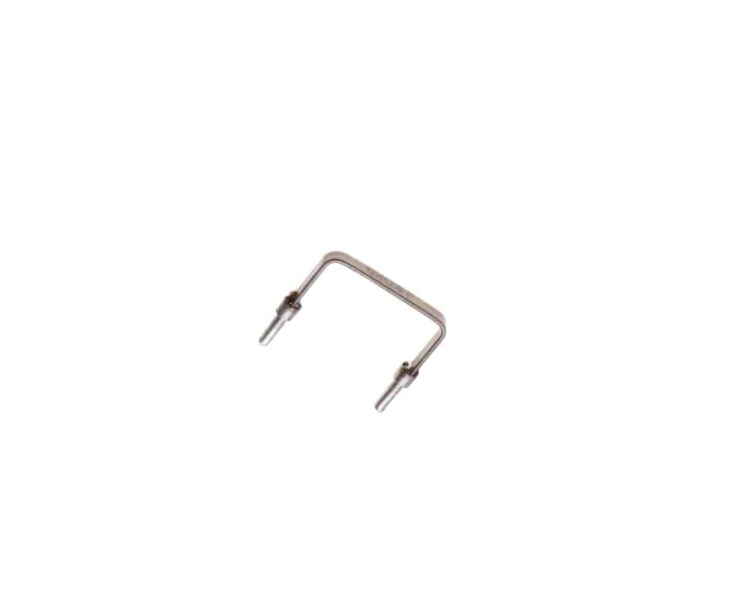

The MSR-1 resistor series from Riedon uses a bare metal element in an all-welded construction for through-hole circuit board mounting to provide resistance values from 0.005Ω up to 0.1Ω, while also achieving low inductance (<10nH) and a low TCR (±20ppm/°C). The MSR resistor series is available in various sizes, tolerances down to ±1.0% and power ratings up to 5W, with the MSR-1 range offering a power rating of 1W.

  • Bare metal element through-hole resistor
  • All-welded construction
  • Available in select resistance values between 0.005Ω and 0.1Ω
  • Low inductance of <10nH
  • Tolerance options of ±1.0% and ±5.0% available
  • Resistance wire TCR of ±20 ppm/°C
  • Power rating of 1W (at +85°C)
  • Maximum rated operating temperature +85°C
  • Temperature range up to +275°C

The high power MSR resistor series with their low ohmic resistance values make them ideal for current sensing and shunt applications.

By inserting one of these resistors in series with the load current, a small voltage drop will be seen which can be readily measured and used to calculate the current flowing through the resistor.

The MSR series is capable of handling several Amps, even tens of Amps thanks to their low resistances and high power ratings.

The below table gives the full specifications for each resistor model available in the Riedon MSR bare metal element resistor range including the MSR-1 series:

Riedon MSR Specifications

1 Please contact us for other resistance values


Specifications

Weight 0.00000 kg
Dimensions 11.40 × 1.70 × 5.10 mm
Series / Model

Minimum Resistance

Maximum Resistance

Tolerance

,

Power Rating

Resistance Value

, , , , , , ,

Temperature Coefficient

RoHS Compliant Product – Riedon

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

Riedon MSR Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Riedon MSR bare metal element all-welded resistor series datasheet
A resistor primer application note
Current sense resistors application note
Custom resistors for high pulse applications application note
DC ammeter shunts press release
Expanded DC current shunts press release
High pulse custom resistor white paper
LED lighting resistors application note
Pulse rated wirewound resistors application note
Resistors for power supplies white paper
Resistors for the medical market white paper
RTD basics application note
The 'good old' power resistors application note
Understanding temperature coefficient of resistance application notes
Using power resistors as heaters application note
Using wirewound vs. film resistors for precision applications application note
