Metal Clad Wire Wound Resistors

RARA ULM2800

Metal clad wire wound resistor
Resistance options from 0.7Ω up to 135Ω
Power rating of up to 750W (on heatsink)
Tolerance options between ±1% and ±10.0%
TCR of +260 ppm/°C maximum
For Non UL Approval see the IRM

Datasheet

Resistance Value

Tolerance

Inductive or Non Inductive

Termination / Connection

Lead Length

Clear

Custom resistance value (Ω) *
Custom AT Range (AT) *
Custom Capacity (lbs) *
Custom Pressure (Bar/PSI) *
Custom Resistance Value Element 1 (Ω) *
Custom Resistance Value Element 2 (Ω) *
Custom lead length (mm) *
Custom lead length (inches) *

Quantity

Add to Compare

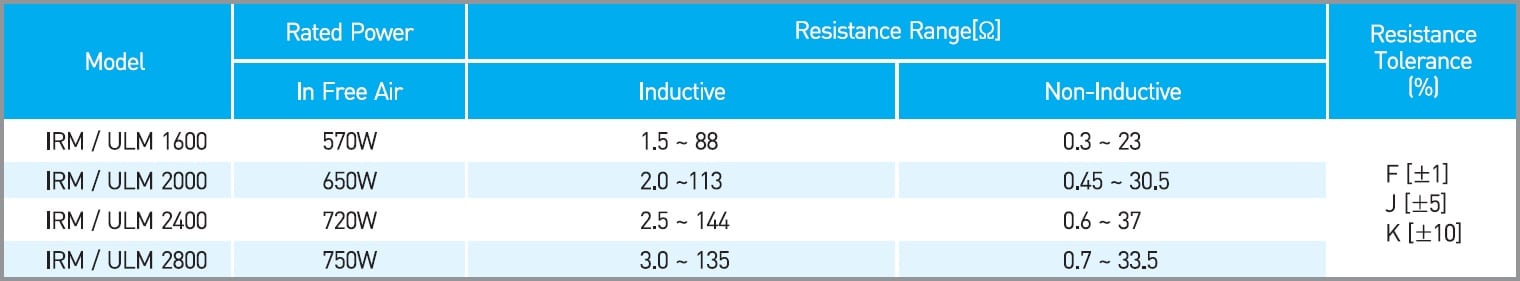

The ULM2800 metal clad wire wound resistor series from RARA offers a power rating of up to 750W in free air, with available resistance values between 3Ω and 135Ω (inductive design) or between 0.7Ω and 33.5Ω (non-inductive design). These high power resistors are available with tolerances of ±1.0%, ±5.0% and ±10.0% as standard with tab terminals, as well as inductive or non-inductive resistive windings. The ULM2800 series from RARA are UL approved metal cover type with an extruded aluminium housing providing strong and rugged protection all with a temperature range from -55°C up to +200°C

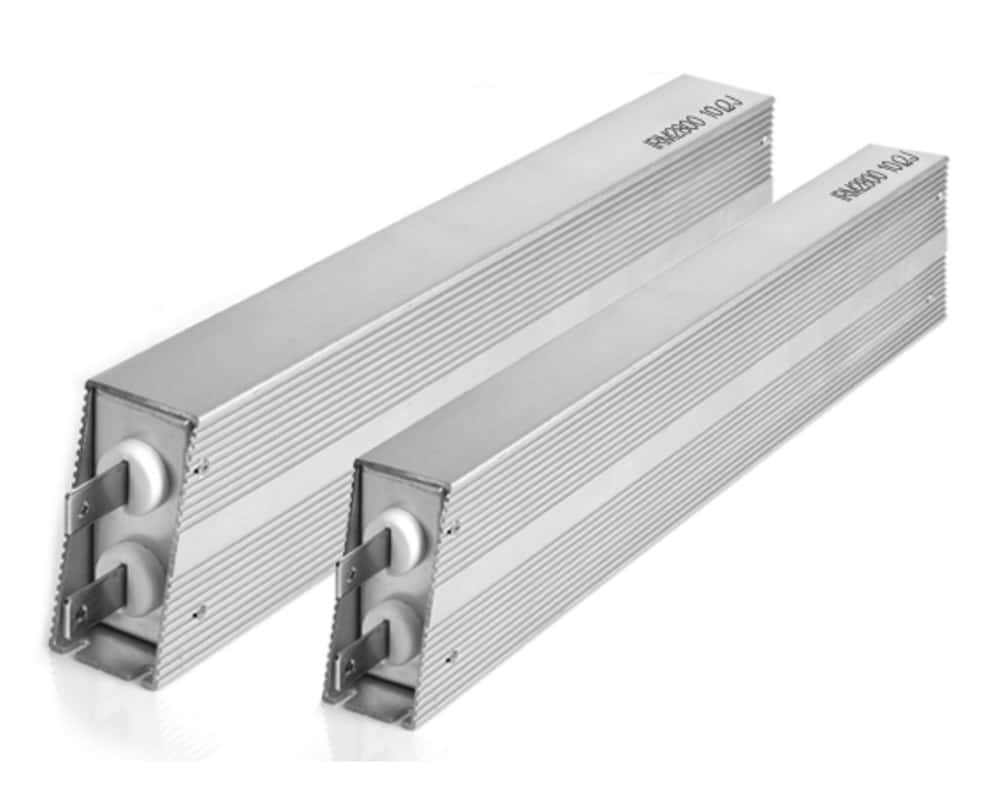

Metal clad wire wound resistor
Tab terminal connections
Inductive resistance ranges available between 3Ω and 135Ω
Non-inductive resistance ranges available between 0.7Ω and 33.5Ω
TCR of +260 ppm/°C maximum
Tolerance values available of ±1.0%, ±5.0% and ±10.0%
Power rating of 750W in free air
Insulation resistance of 20MΩ minimum
Metal cover type with an extruded aluminium housing
UL approved
Temperature range between -55°C and +200°C
Short time overload of 10 x power rating for 5 seconds

Typical applications for the ULM series include:

Motor drives
braking and snubbing applications
Power sources for industrial equipment

Specifications

Weight	4.30000 kg

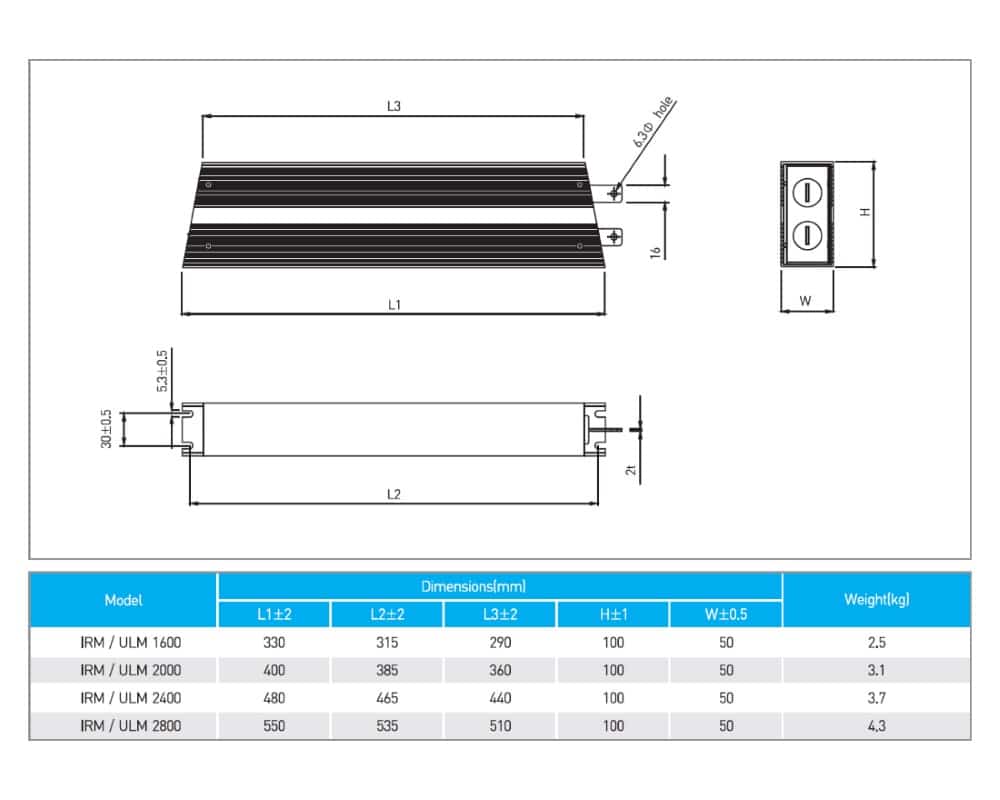

Dimensions	100.00 x 50.00 x 550.00mm
Product Type	Metal Clad, Wirewound, Resistor
Series / Model	ULM
Power Rating	750W
Minimum Resistance	0.7Ω
Maximum Resistance	135Ω
Tolerance	±1%, ±5%, ±10%
Temperature Coefficient	±260 ppm/°C
Insulation Resistance	20MΩ minimum
Inductive or Non Inductive	Inductive, Non Inductive
Termination / Connection	Flying Leads, Tab Terminals
Temperature Range (°C)	-55 to +200°C (Cement)

Series/Model (ULMXXX)

ULM2800

Inductive/Non-Inductive (X)

(Blank) Inductive
N Non-Inductive

Resistance Value (XXXXΩ)

Resistance value expressed in ohms, for example 220.5Ω or 2Ω.

Tolerance (X)

F: ±1%
J: ±5%
K: ±10%

Termination (FLXXX)

FL XXX Flying Lead **
(Blank) Tab Terminal

_{* Defined by the resistance value chosen, see datasheet for full details}
_{** Please include requested lead length with request, for example, FL300 for 300mm flying leads}

Product Variations

SKU	Resistance Value	Tolerance	Inductive or Non Inductive	Termination / Connection	Lead Length
RARA ULM2800 Series	Custom (0.7Ω - 3Ω)	±1%	Non Inductive	Flying Leads	Custom (mm)
RARA ULM2800 Series	Custom (0.7Ω - 3Ω)	±1%	Non Inductive	Tab Terminals	No cable
RARA ULM2800 Series	Custom (0.7Ω - 3Ω)	±10%	Non Inductive	Flying Leads	Custom (mm)
RARA ULM2800 Series	Custom (0.7Ω - 3Ω)	±10%	Non Inductive	Tab Terminals	No cable
RARA ULM2800 Series	Custom (0.7Ω - 3Ω)	±5%	Non Inductive	Flying Leads	Custom (mm)
RARA ULM2800 Series	Custom (0.7Ω - 3Ω)	±5%	Non Inductive	Tab Terminals	No cable
RARA ULM2800 Series	Custom (33.5Ω - 135Ω)	±1%	Inductive	Flying Leads	Custom (mm)
RARA ULM2800 Series	Custom (33.5Ω - 135Ω)	±1%	Inductive	Tab Terminals	No cable
RARA ULM2800 Series	Custom (33.5Ω - 135Ω)	±10%	Inductive	Flying Leads	Custom (mm)
RARA ULM2800 Series	Custom (33.5Ω - 135Ω)	±10%	Inductive	Tab Terminals	No cable
RARA ULM2800 Series	Custom (33.5Ω - 135Ω)	±5%	Inductive	Flying Leads	Custom (mm)
RARA ULM2800 Series	Custom (33.5Ω - 135Ω)	±5%	Inductive	Tab Terminals	No cable
RARA ULM2800 Series	Custom (3Ω - 33.5Ω)	±1%	Inductive	Flying Leads	Custom (mm)
RARA ULM2800 Series	Custom (3Ω - 33.5Ω)	±1%	Inductive	Tab Terminals	No cable
RARA ULM2800 Series	Custom (3Ω - 33.5Ω)	±1%	Non Inductive	Flying Leads	Custom (mm)
RARA ULM2800 Series	Custom (3Ω - 33.5Ω)	±1%	Non Inductive	Tab Terminals	No cable
RARA ULM2800 Series	Custom (3Ω - 33.5Ω)	±10%	Inductive	Flying Leads	Custom (mm)
RARA ULM2800 Series	Custom (3Ω - 33.5Ω)	±10%	Inductive	Tab Terminals	No cable
RARA ULM2800 Series	Custom (3Ω - 33.5Ω)	±10%	Non Inductive	Flying Leads	Custom (mm)
RARA ULM2800 Series	Custom (3Ω - 33.5Ω)	±10%	Non Inductive	Tab Terminals	No cable
RARA ULM2800 Series	Custom (3Ω - 33.5Ω)	±5%	Inductive	Flying Leads	Custom (mm)
RARA ULM2800 Series	Custom (3Ω - 33.5Ω)	±5%	Inductive	Tab Terminals	No cable
RARA ULM2800 Series	Custom (3Ω - 33.5Ω)	±5%	Non Inductive	Flying Leads	Custom (mm)
RARA ULM2800 Series	Custom (3Ω - 33.5Ω)	±5%	Non Inductive	Tab Terminals	No cable

ULM Series Products

Electronic Components

Product name	Dimensions	Power Rating	Minimum Resistance	Maximum Resistance	Tolerance	Temperature Coefficient
RARA ULM600	59.00 x 61.00 x 235.00mm	330W, 600W	0.1Ω	94Ω	±1%, ±2%, ±5%, ±10%	±260 ppm/°C	View Product
RARA ULM800	59.00 x 61.00 x 285.00mm	360W, 800W	0.1Ω	112Ω	±1%, ±2%, ±5%, ±10%	±260 ppm/°C	View Product
RARA ULM1000	59.00 x 61.00 x 335.00mm	400W, 1kW	0.1Ω	140Ω	±1%, ±2%, ±5%, ±10%	±260 ppm/°C	View Product
RARA ULM1200	59.00 x 61.00 x 405.00mm	480W, 1.2kW	0.1Ω	160Ω	±1%, ±2%, ±5%, ±10%	±260 ppm/°C	View Product
RARA ULM1600	100.00 x 50.00 x 330.00mm	570W	0.3Ω	88Ω	±1%, ±5%, ±10%	±260 ppm/°C	View Product
RARA ULM2000	100.00 x 50.00 x 400.00mm	650W	0.45Ω	113Ω	±1%, ±5%, ±10%	±260 ppm/°C	View Product
RARA ULM2400	100.00 x 50.00 x 480.00mm	720W	0.6Ω	144Ω	±1%, ±5%, ±10%	±260 ppm/°C	View Product
RARA ULM2800	100.00 x 50.00 x 550.00mm	750W	0.7Ω	135Ω	±1%, ±5%, ±10%	±260 ppm/°C	View Product
