1kΩ series
- TO-220 style Kool-Pak® power through-hole resistor
- Heat sink mountable design featuring an exposed ceramic heat dissipating mounting surface
- Non-inductive design
- Constructed with Caddock’s Micronox® resistance film technology
- Maximum voltage rating of 250V
- Operation up to +150°C case temperature
- Through-hole precision resistor network
- 2 resistor elements, with either a ratio of 10:1, 9:1 or 1:1
- Utilises Caddock’s Tetrinox® resistance technology
- Voltage rating of 30VDC or RMS AC applied to R1 or R2
- Custom options and configurations are available upon request
- Through-hole precision resistor network
- 4 resistor elements, with a ratio of 1:1
- Utilises Caddock’s Tetrinox® resistance technology
- Voltage rating of 30VDC or RMS AC applied to R1, R2, R3 or R4
- Custom options and configurations are available upon request
- Ultra-precision film through-hole resistor
- Radial or axial leaded variants available
- Maximum working voltage of 300V
- Constructed with Caddock’s Tetrinox® resistance films
- Long term stability to 0.01% per 1,000 hours
- Storage temperature range from -55°C up to +105°C
- Precision radial leaded film through-hole resistor
- Caddock’s non-inductive performance
- Maximum working voltage of 200V
- Compact rectangular package with standard lead spacing
- Constructed with Caddock’s Tetrinox® resistance films
- Long-term absolute stability typically better than ±0.05% per 2,000 hours
- Temperature range from -40°C up to +150°C

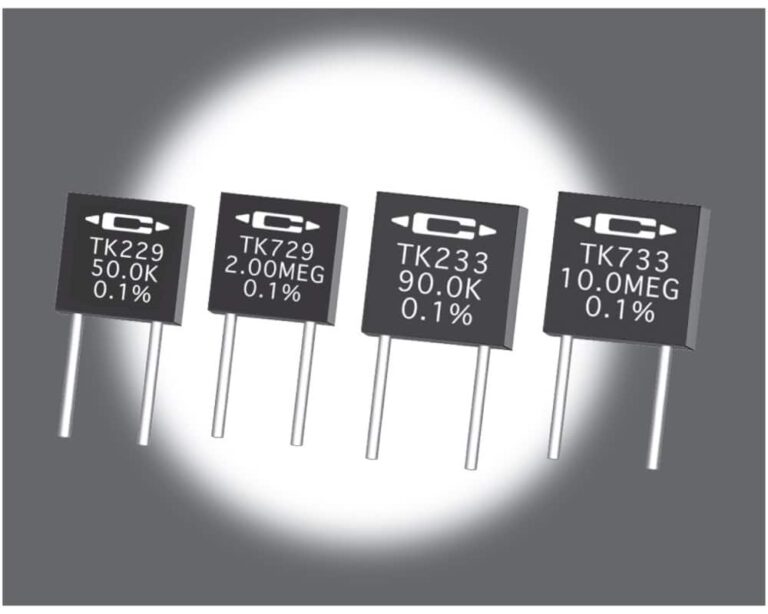

- Precision radial leaded film through-hole resistor
- Caddock’s non-inductive performance
- Maximum working voltage of 300V
- Compact rectangular package with standard lead spacing
- Constructed with Caddock’s Tetrinox® resistance films
- Long-term absolute stability typically better than ±0.05% per 2,000 hours
- Temperature range from -40°C up to +150°C
- Metal clad thick film resistor
- Resistance range from 1kΩ to 2MΩ
- Max power rating of 15W
- Cement moulding within aluminium housing
- Short time overload of 2 x power rating is 5 seconds
- High stability at conventional power ratings
- Temperature range of -55°C up to +250°C
- Metal clad thick film resistor
- Resistance range from 1kΩ to 2MΩ
- Max power rating of 25W
- Cement moulding within aluminium housing
- Short time overload of 2 x power rating is 5 seconds
- High stability at conventional power ratings
- Temperature range of -55°C up to +250°C
